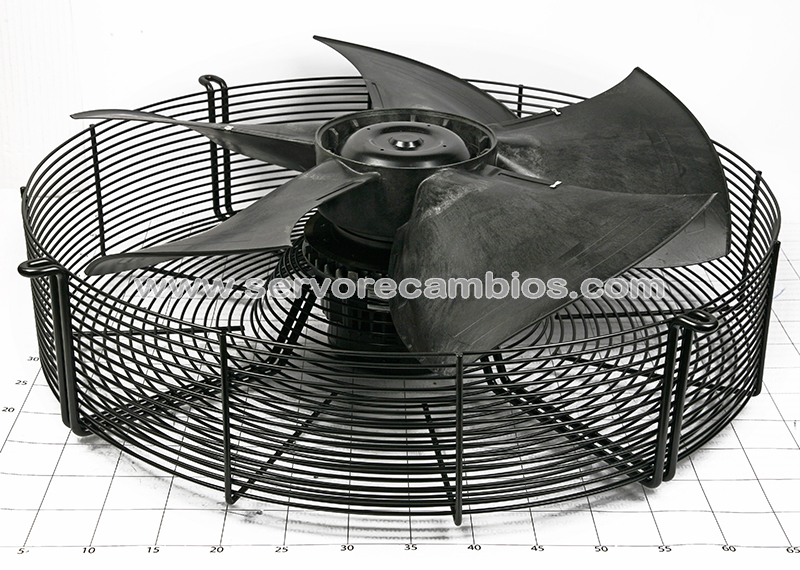

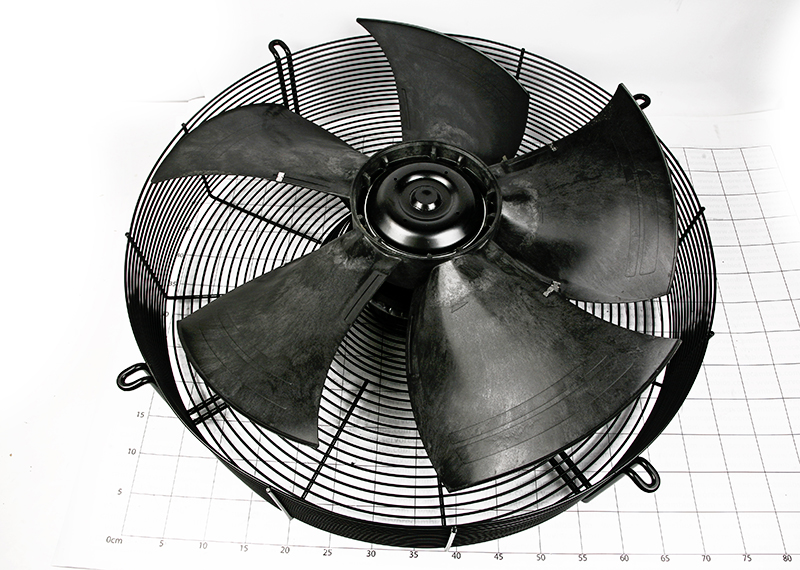

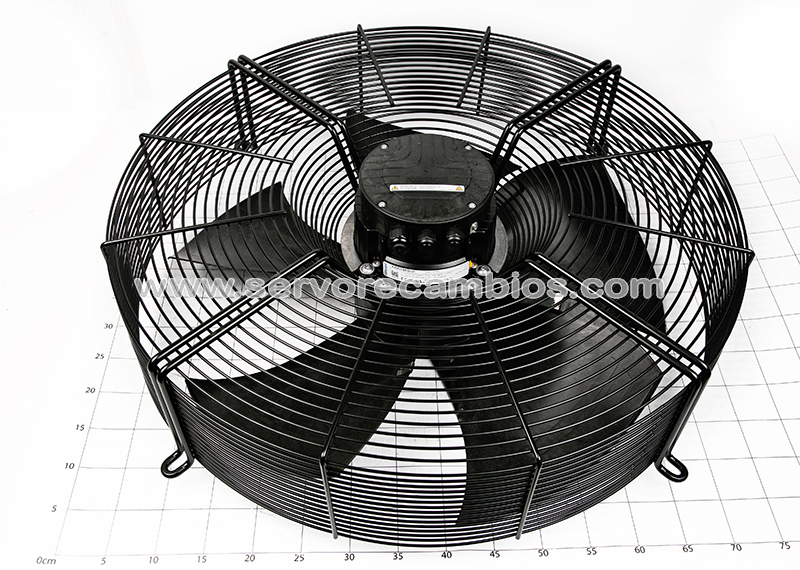

A3G630-BE55-21

Type A3G630-BE55-21
Motor M3G112-GA
Phase 1~
Nominal voltage VAC 230
Nominal voltage range VAC 200 .. 277
Frequency Hz 50/60
Method of obtaining data ml
Speed (rpm) min-1 1020
Power consumption W 730
Current draw A 3.2
Max. back pressure Pa 150
Max. back pressure in. wg 0.6
Min. ambient temperature °C -25
Max. ambient temperature °C 60
Mass 9.6 kg
Size 630 mm
Motor size 112
Rotor surface Painted black
Terminal box material PP plastic
Electronics housing material Die-cast aluminum, painted black
Blade material Press-fitted sheet steel blank, sprayed with PP plastic
Number of blades 5
Airflow direction V
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP55
Insulation class «F»
Moisture (F) / Environmental (H)
protection class H2
Ambient temperature note Occasional start-up between -40°C and -25°C is permissible.
For continuous operation at temperatures below -25°C (e.g. refrigeration applications)
we recommend our fan design with special low-temperature bearings.
Max. permitted ambient temp.
for motor (transport/storage)+80 °C
Min. permitted ambient temp. for
motor (transport/storage)-40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Technical features – Output 10 VDC, max. 10 mA
– Operation and alarm display
– Alarm relay
– Integrated PID controller
– Power limiter
– Motor current limitation
– PFC, active
– RS-485 MODBUS-RTU
– Soft start
– Control input 0-10 VDC / PWM
– Control interface with SELV potential safely disconnected from supply
– Thermal overload protection for electronics/motor
– Line undervoltage / phase failure detection
EMC immunity to interference According to EN 61000-6-2 (industrial environment)
EMC circuit feedback According to EN 61000-3-2/3
EMC interference emission According to EN 61000-6-3 (household environment)
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) <= 3.5 mA
Electrical hookup Terminal box
Motor protection Thermal switch auto reset, internally connected
Protection class I (with customer connection of protective earth)
Conformity with standards EN 61800-5-1; CE
Approval CSA C22.2 No. 77 + CAN/CSA-E60730-1; EAC; UL 1004-7 + 60730-1
