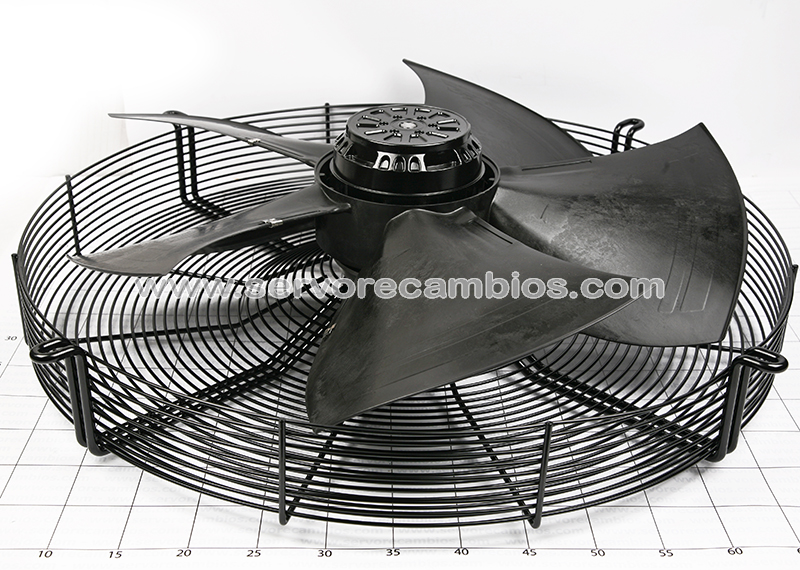

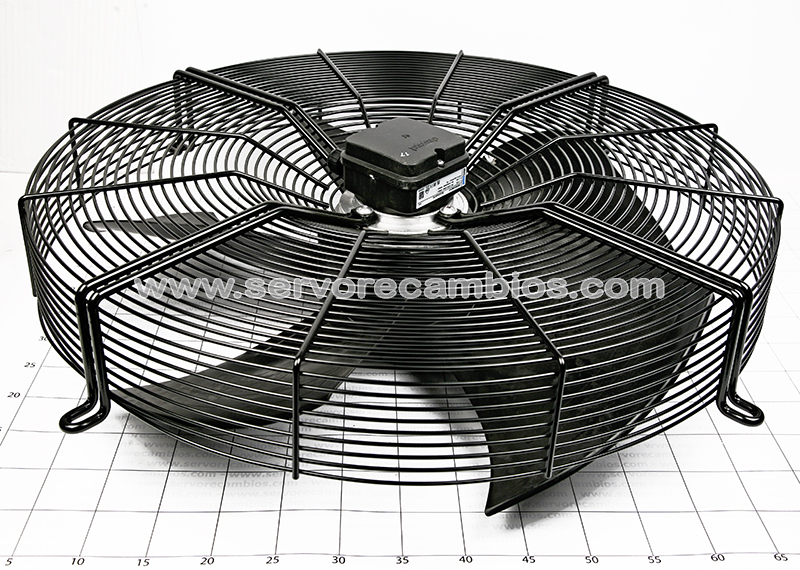

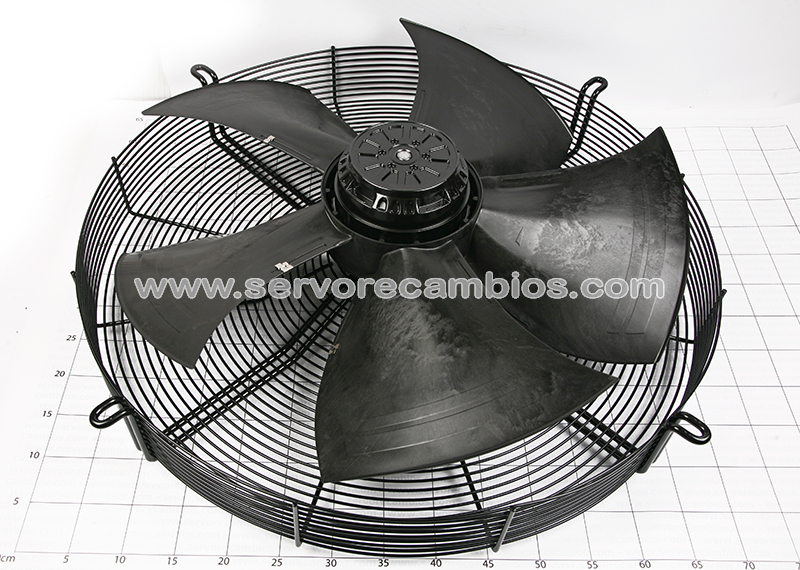

A6D630-AN01-01

Type A6D630-AN01-01
Motor M6D110-GF
Phase 3~ 3~ 3~ 3~ 3~ 3~
Nominal voltage VAC 400 400 400 400 480 480
Connection Δ Y Δ Y Δ Y
Frequency Hz 50 50 60 60 60 60
Type of data definition ml ml ml ml ml ml
Valid for approval / standard CE CE CE CE CE CE
Speed min-1 890 690 1010 700 1070 820
Power input W 600 400 730 430 810 550
Current draw A 1.2 0.68 1.29 0.8 1.35 0.8
Max. back pressure Pa 105 56 50 26 55 35
Min. ambient temperature °C -40 -40 -40 -40 -40 -40
Max. ambient temperature °C 65 65 60 60 55 55
Starting current A 4 1.33 3.5 1.17
Mass 9.9 kg
Size 630 mm
Surface of rotor Coated in black
Material of terminal box PP plastic
Material of blades Press-fitted sheet steel blank, sprayed with PP plastic
Number of blades 5
Direction of air flow «V»
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 54
Insulation class «F»
Humidity class F4-1
Max. permissible ambient motor
temp. (transp./ storage) + 80 °C
Min. permissible ambient motor
temp. (transp./storage) – 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN system) <= 3.5 mA
Electrical leads Via terminal box
Motor protection Thermal overload protector (TOP) brought out
Cable exit Axial
Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 61800-5-1; CE
Approval CCC; EAC; VDE
