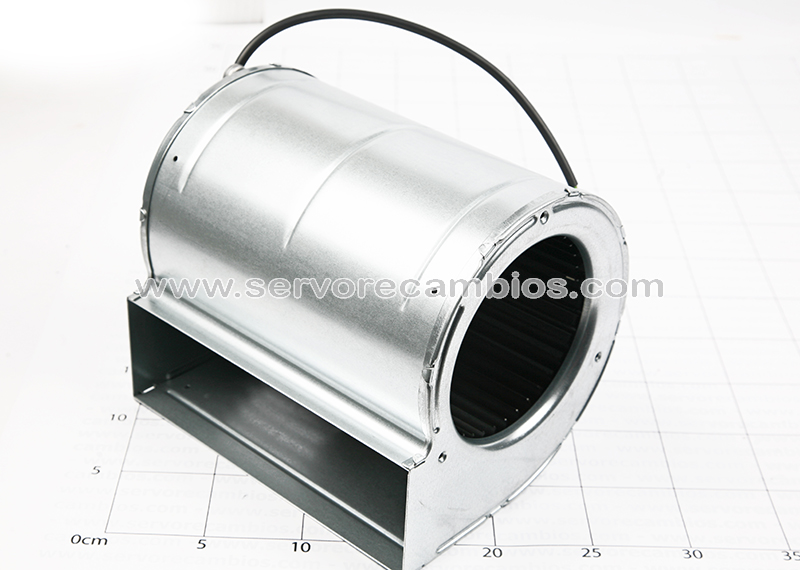

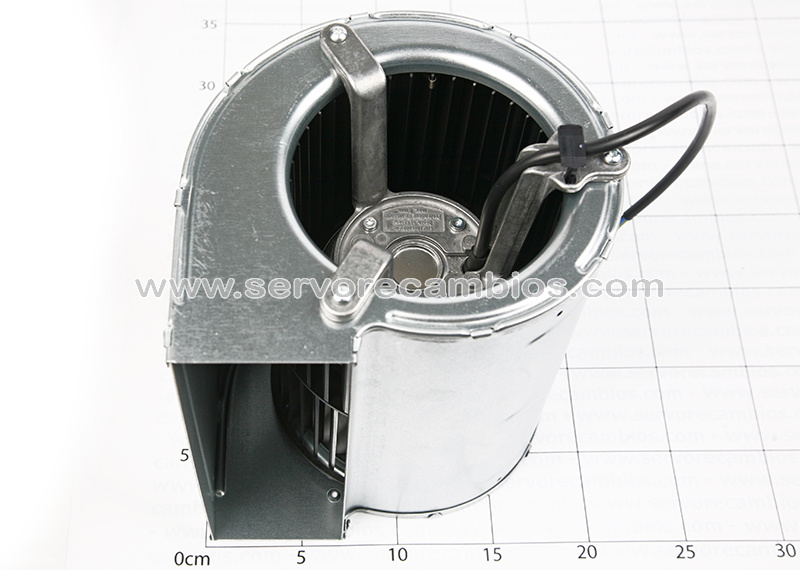

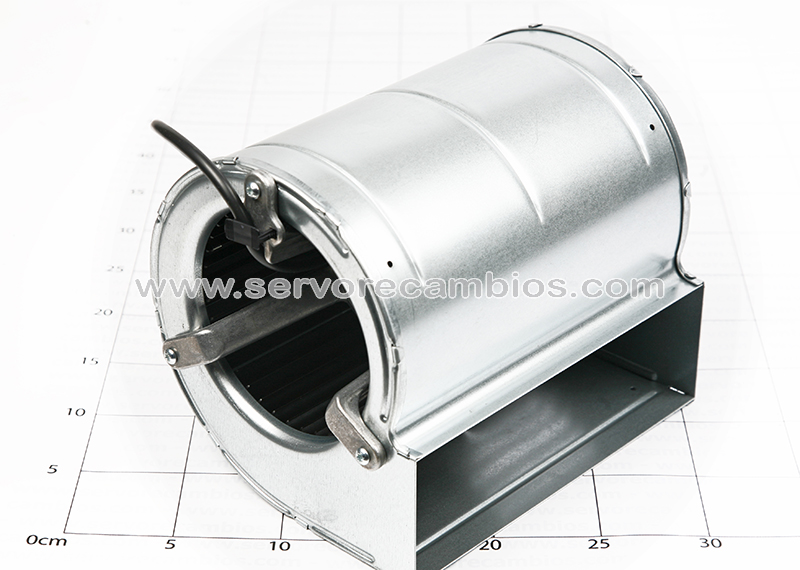

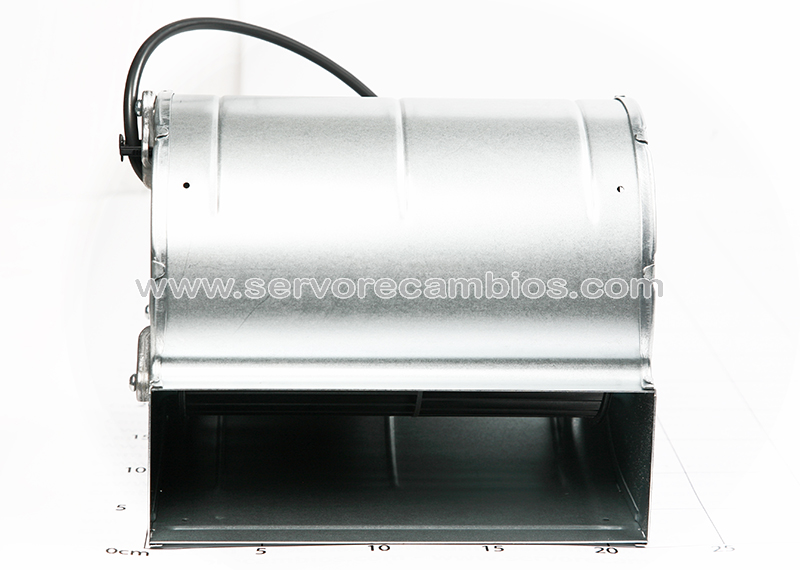

D4E133-AH01-55

Type D4E133-AH01-55
Motor M4E068-BF
Phase 1~
Nominal voltage [V] 230
Frequency [Hz] 60
Type of data definition rfa
Valid for approval / standard CE
Speed [min-1] 1240
Power input [W] 80
Current draw [A] 0.35
Motor capacitor [µF] 2
Capacitor voltage [VDB] 400
Capacitor standard P0 (CE)
Min. back pressure [Pa] 0
Max. ambient temperature [°C] 40
Leackage current < 0.75 mA
General description Without flange
Size 133 mm
Operation mode S1
Direction of rotation Clockwise, seen on rotor
Mounting position Any
Humidity class F0
Insulation class «B»
Condensate discharge holes None
Bearing motor Ball bearing
Mass 2.3 kg
Housing material Sheet steel, hot-galvanised
Material of impeller Plastic PA6, fibreglass-reinforced
Motor suspension Motor mounted via brackets on one side
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to standard CE; EN 60335-1
Surface of rotor Partially cast in aluminium
Type of protection IP 44; Depending on installation and position
Protection class I
Max. permissible ambient
motor temp. (transp./ storage) + 80 °C
Min. permissible ambient
motor temp. (transp./storage) – 40 °C
Approval CCC
