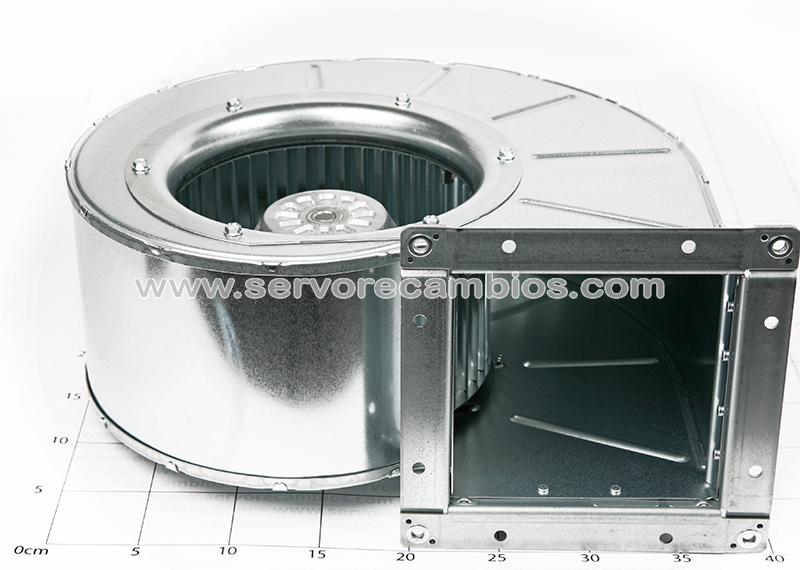

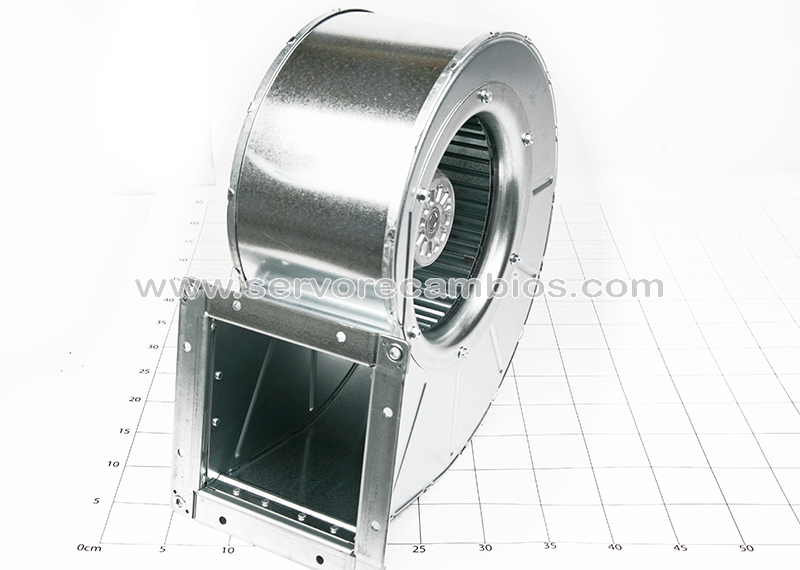

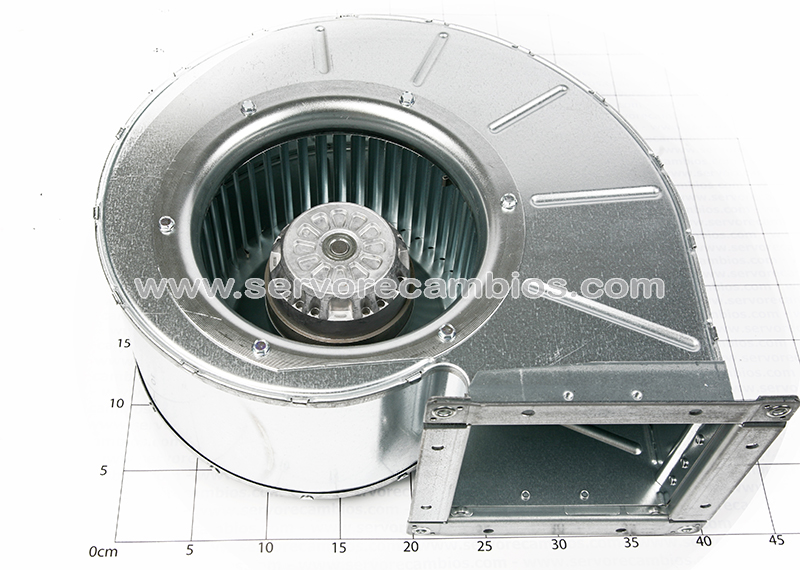

Type G4E200-BL03-01
Motor M4E074-EI
Phase 1~ 1~
Nominal voltage / VAC 230 230
Frequency / Hz 50 60
Method of obtaining data fa ml
Valid for approval/ standard CE CE
Speed (rpm) / min-1 1300 1480
Power consumption / W 280 350
Current draw / A 1.25 1.55
Capacitor / µF 8 8
Capacitor voltage / VDB 400 400
Capacitor standard S0 (CE) S0 (CE)
Min. back pressure / Pa 0 100
Min. ambient temperature / °C -25 -25
Max. ambient temperature / °C 40 40
Mass 7.06 kg
Size 200 mm
Motor size 74
Rotor surface Unpainted
Impeller material Sheet steel, galvanized
Housing material Sheet steel, galvanized
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent
Insulation class «F»
Moisture (F) / Environmental (H)
protection class H0 – dry environment
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring
circuit Fig. 4, TN system) < 0.75 mA
Motor protection Thermal overload protector (TOP)
internally connected
with cable Axial
Protection class I (with customer connection of protective
earth)
Conformity with standards EN 60335-1
Approval CCC
