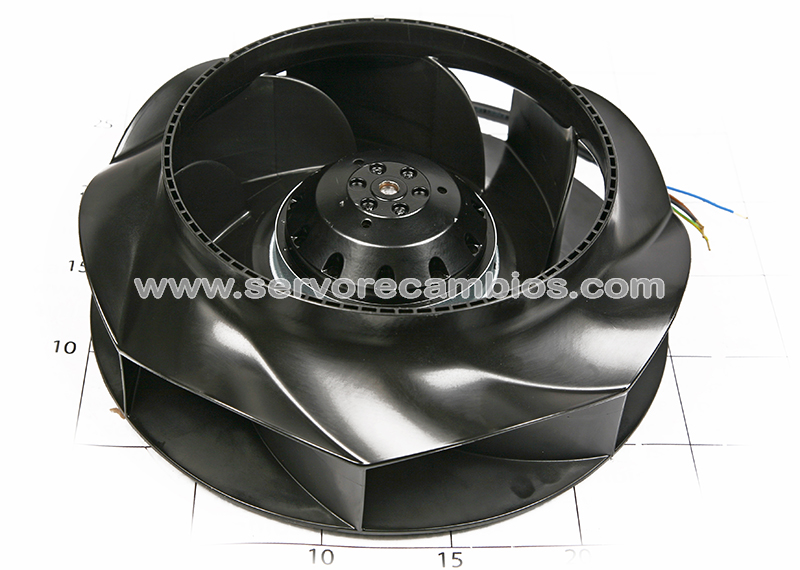

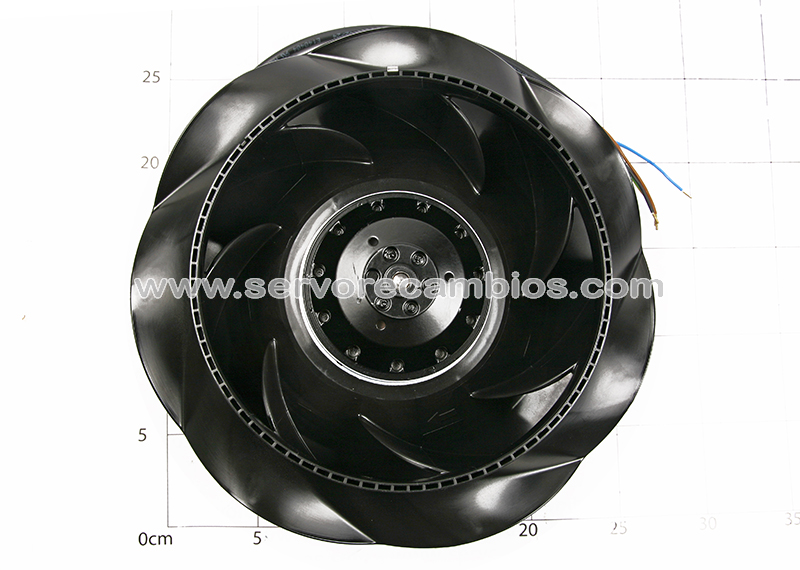

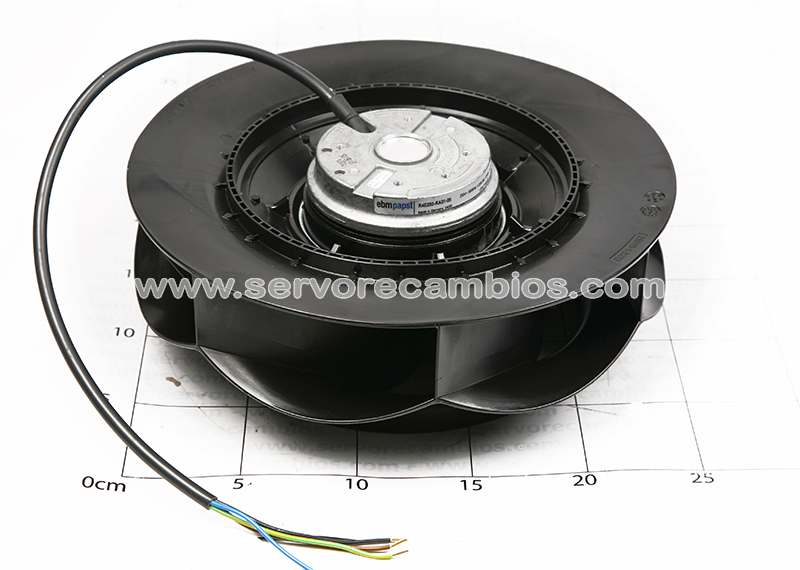

R4E250-RA01-05

Type R4E250-RA01-05
Motor M4E068-CF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Method of obtaining data ml ml
Valid for approval/standard CE CE
Speed (rpm) min-1 1350 1450
Power consumption W 47 53
Current draw A 0.22 0.24
Capacitor μF 1.5 1.0
Capacitor voltage VDB 400 400
Capacitor standard S0 (CE) S0 (CE)
Min. back pressure Pa 0 0
Min. back pressure inH2O 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 55 70
Starting current A 0.43 0.40
Mass 1.9 kg
Fan size 250 mm
Rotor surface Painted black
Impeller material PA6 plastic, glass-fiber reinforced
Number of blades 7
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class «B»
Moisture (F) / Environmental (H)
protection class H0+
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) < 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Approval EAC
