Type 4656 TZ
Phase 1~
Nominal voltage VAC 230
Frequency Hz 50
Speed min-1 2600
Power input W 19.0
Min. ambient temperature °C -40
Max. ambient temperature °C 65
Air flow m3/h 125
Sound pressure level dB(A) 42
Mass 0.430 kg
Dimensions 108 Ø x 37 mm

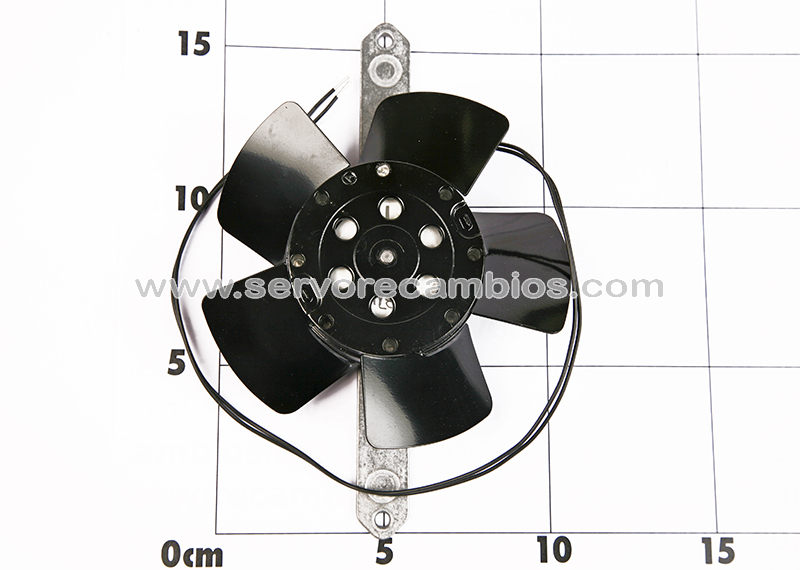

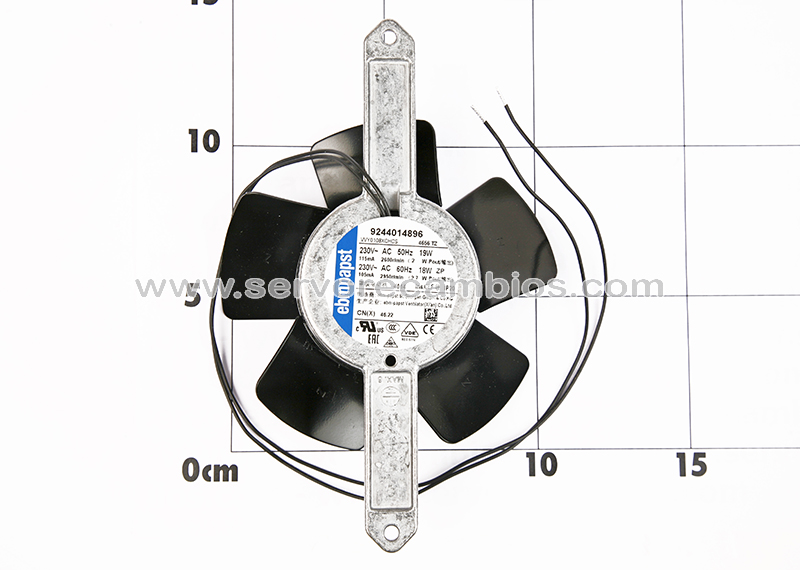

General description AC voltage fan with external rotor shaded-pole motor. Protected from overload by
impedance protection.
Impeller and mounting bracket made of metal.
Air exhaust over mounting bracket. Rotational direction clockwise looking at rotor.
Electrical connection to 2 single strands. Strand ends bared and tin-plated.
Mass 430 g.
Please note our new ACmaxx series. With identical fastening dimensions
and voltages, this series achieves higher energy efficiency.
Connection line 2 single strands AWG 18
Direction of rotation Right, looking at rotor
Direction of air flow Air exhaust over mounting bracket
Bearing Ball bearings
