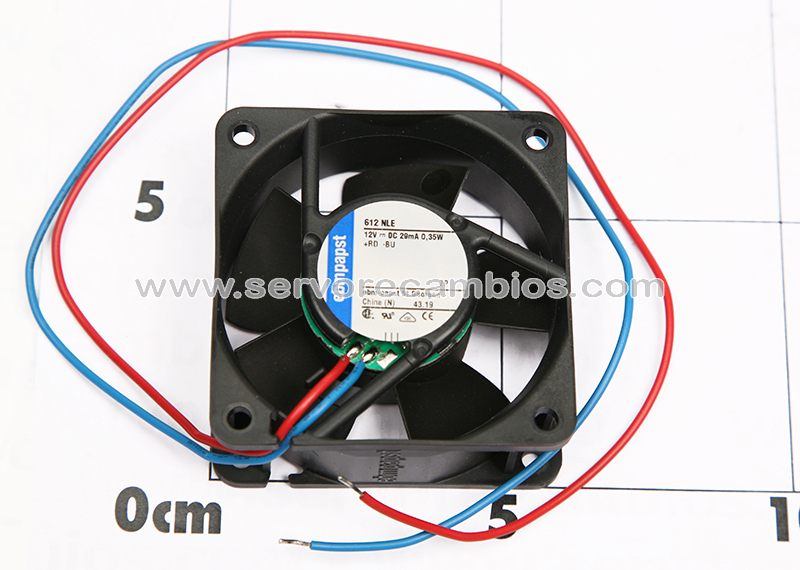

612NLE

Type 612NLE
12V DC
2.500 1/min at free air flow
Rotating direction looking at rotor Clockwise
Airflow direction Air outlet over struts
Bearing system Ball bearing
Mounting position – shaft Any
Width 60.0 mm
Height 60.0 mm
Depth 25.0 mm
Mass 0.066 kg
Housing material Plastic
Impeller material Plastic
Max. torque when mounted across both mounting
flanges
Wire outlet corner: 20 Ncm
Remaining corners: 40 Ncm
Screw size
ISO 4762 – M3 degreased, without an additional
brace and without washer
Min. permitted ambient temperature TU min. -20 °C
Max. permitted ambient temperature TU max. 85 °C
Min. permitted storage temperature TL min. -40 °C
Max. permitted storage temperature TL max. 80 °C
