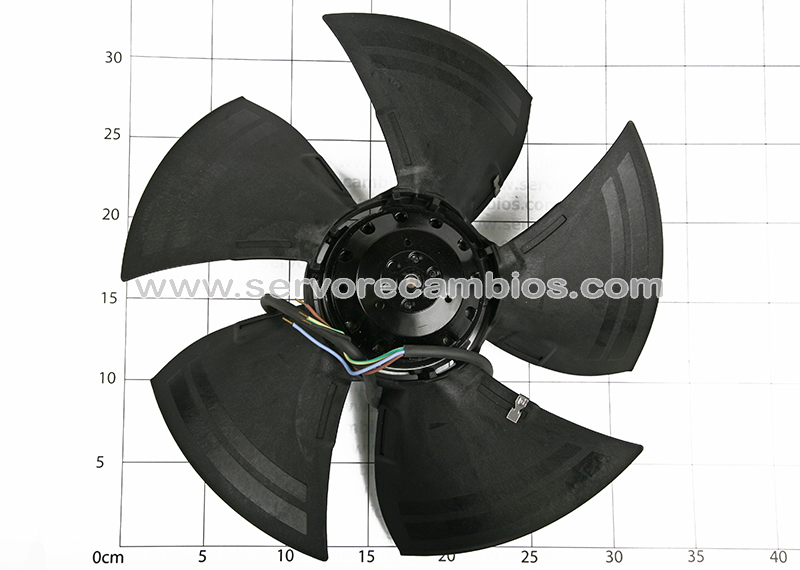

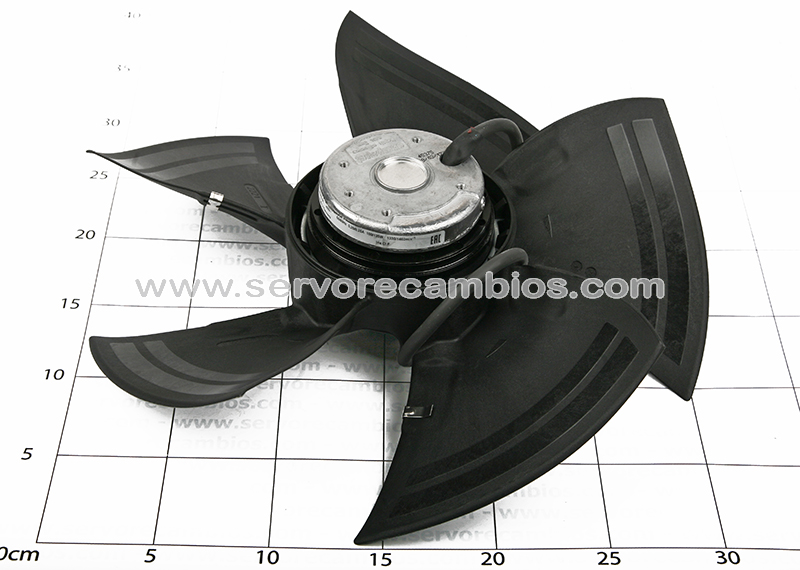

A4D315-AS10-01

Type A4D315-AS10-01
Motor M4D068-DF
Phase 3~ 3~
Nominal voltage VAC 400 400
Wiring Y Y
Frequency Hz 50 60
Method of obtaining data ml ml
Valid for approval/standard – –
Speed (rpm) min-1 1330 1460
Power consumption W 100 135
Current draw A 0.25 0.25
Max. back pressure Pa 65 80
Max. back pressure in. wg 0.26 0.32
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 65 70
Starting current A 0.63 0.62
Mass 2.0 kg
Size 315 mm
Motor size 68
Rotor surface Painted black
Blade material Press-fitted sheet steel blank, sprayed with PP plastic
Number of blades 5
Airflow direction V
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class “F”
Moisture (F) / Environmental (H)
protection class H1
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) < 0.75 mA
With cable Axial
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1, motor does not have factory-installed overheating protection
Approval EAC
