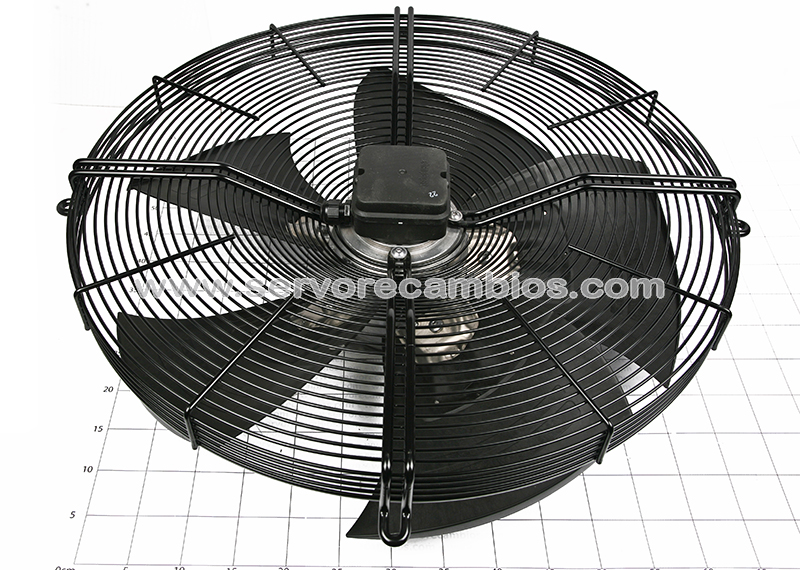

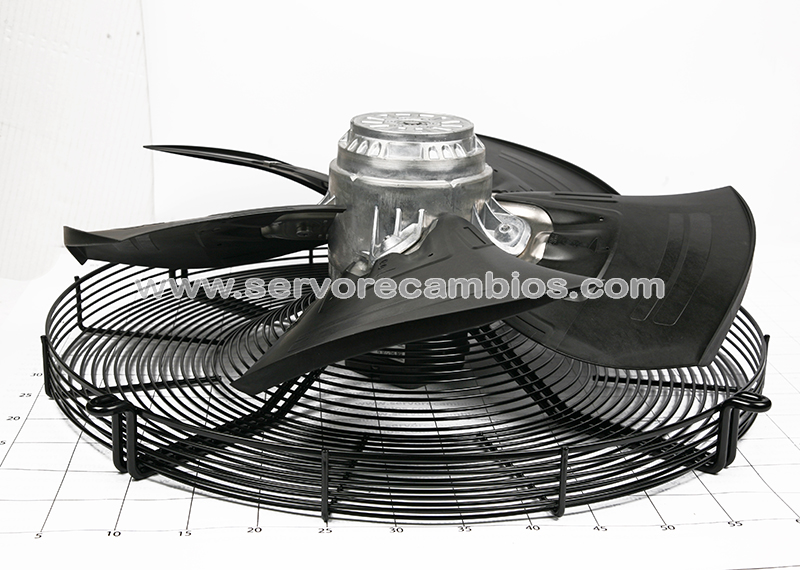

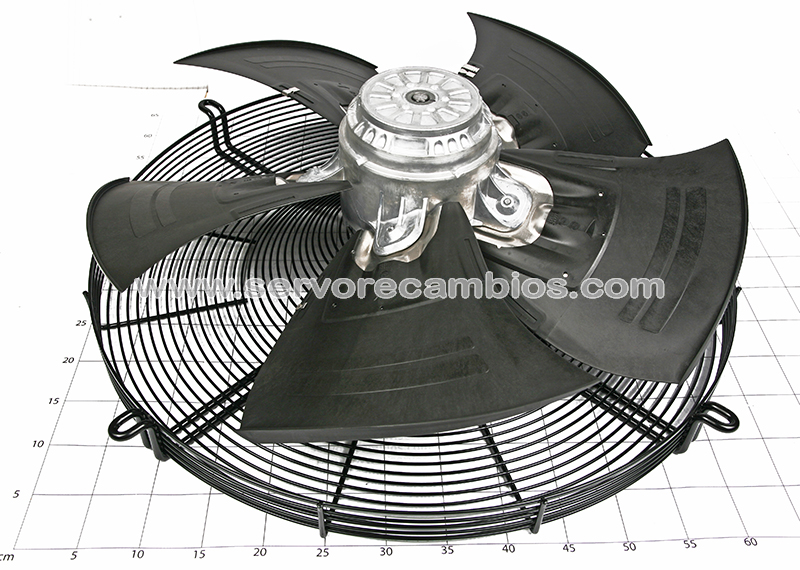

A4D630-AR01-01

Type A4D630-AR01-01
Motor M4D110-IA
Phase 3~ 3~
Nominal voltage VAC 400 400
Connection Δ Y
Frequency Hz 50 50
Type of data definition ml ml
Valid for approval / standard CE CE
Speed min-1 1330 1070
Power input W 1250 840
Current draw A 2.48 1.42
Max. back pressure Pa 150 100
Min. ambient temperature °C -40 -40
Max. ambient temperature °C 55 55
Starting current A 10
Mass 12.2 kg
Size 630 mm
Surface of rotor Cast in aluminium
Material of terminal box PP plastic
Material of blades Aluminium sheet insert, sprayed with PP plastic
Number of blades 5
Blade angle -10°
Direction of air flow “V”
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 54
Insulation class “F”
Humidity class F3-1
Max. permissible ambient motor
temp. (transp./ storage) + 80 °C
Min. permissible ambient motor
temp. (transp./storage) – 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system) <= 3.5 mA
Electrical leads Via terminal box
Motor protection Thermal overload protector (TOP) brought out
Cable exit Axial
Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 61800-5-1; CE
Approval GOST; VDE; CCC
