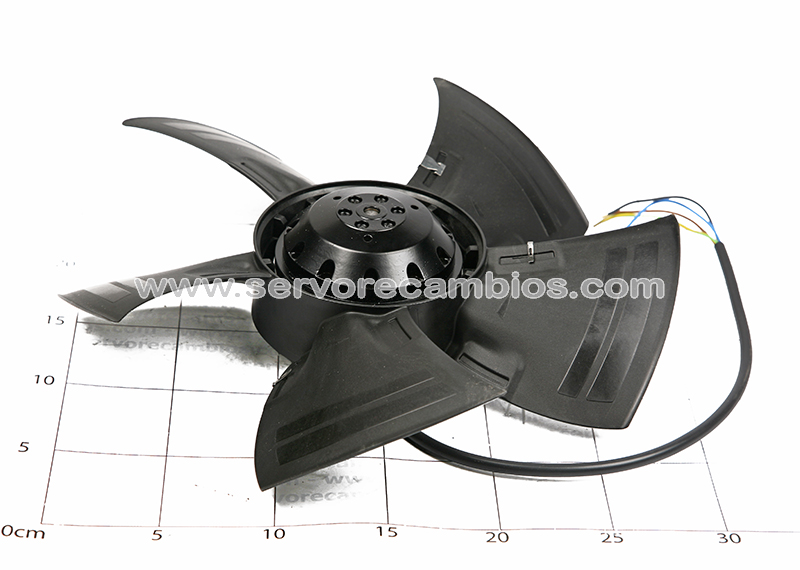

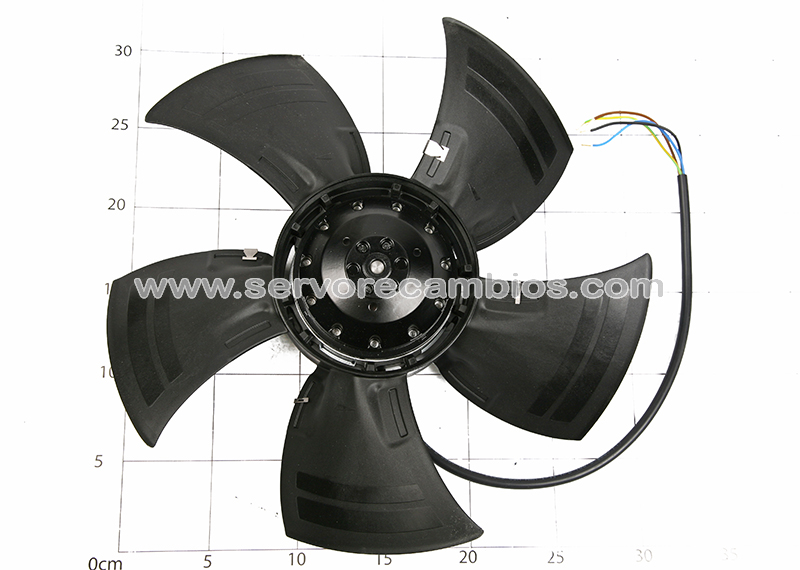

A4E300-AS72-01

Type A4E300-AS72-01
Motor M4E068-CF
Phase 1~ 1~ 1~
Nominal voltage VAC 230 230 230
Frequency Hz 50 60 60
Method of obtaining data ml ml ml
Valid for approval/standard CE CE UL 2111
Speed (rpm) min-1 1320 1500 1500
Power consumption W 72 90 96
Current draw A 0.32 0.4 0.42
Capacitor μF 2 2 2
Capacitor voltage VDB 400 400 400
Capacitor standard S0 (CE) S0 (CE) UL
Max. back pressure Pa 60 60 60
Max. back pressure in. wg 0.24 0.24 0.24
Min. ambient temperature °C -25 -25 -25
Max. ambient temperature °C 50 50 50
Starting current A 0.6 0.57 0.6
Mass 1.72 kg
Size 300 mm
Motor size 68
Rotor surface Painted black
Blade material Press-fitted sheet steel blank, sprayed with PP plastic
Number of blades 5
Airflow direction V
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class “B”
Moisture (F) / Environmental (H)
protection class H1
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Any
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system)< 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Approval CCC; EAC
