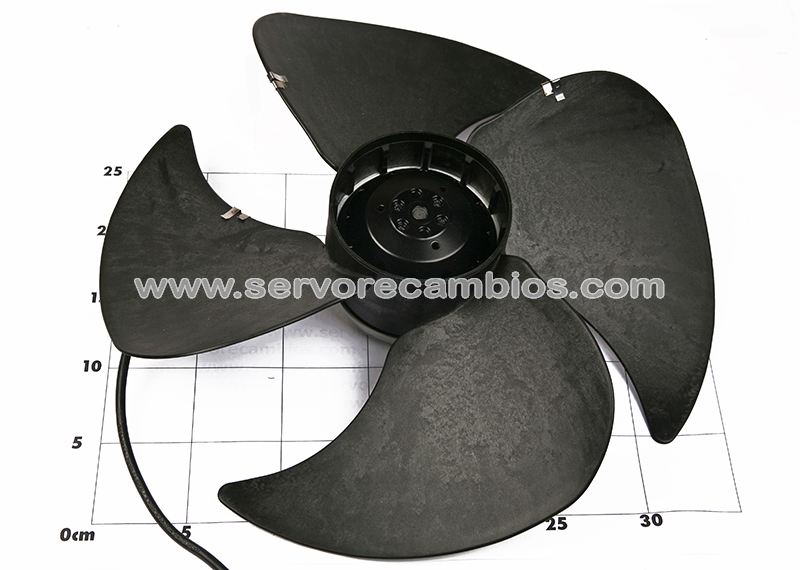

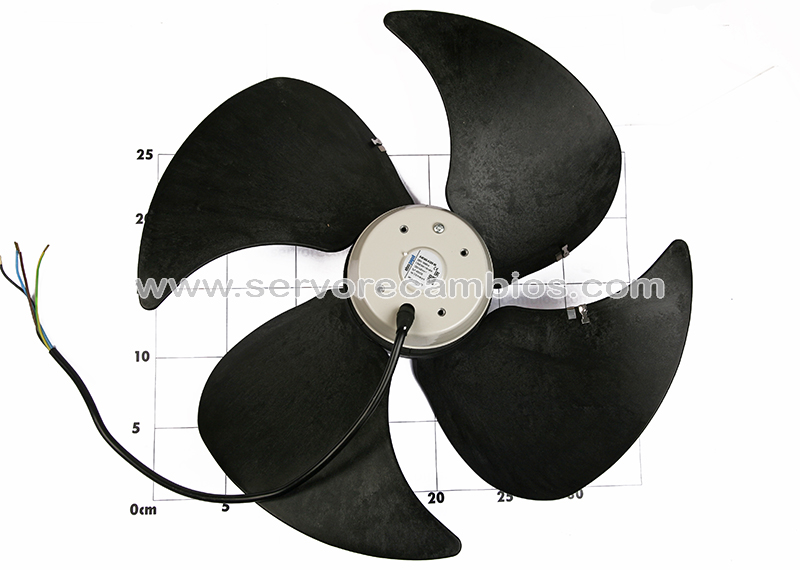

A4E360-AC20-06

Type A4E360-AC20-06
Motor M4E068-DF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Method of obtaining data fa fa
Valid for approval/standard CE CE
Speed (rpm) min-1 1320 1430
Power consumption W 115 145
Current draw A 0.54 0.64
Capacitor μF 3 3
Capacitor voltage VDB 400 400
Capacitor standard S0 (CE) S0 (CE)
Max. back pressure Pa 55 40
Max. back pressure in. wg 0.22 0.16
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 40 40
Starting current A 1.1 1.06
Mass 2.2 kg
Size 360 mm
Motor size 68
Rotor surface Painted black
Impeller material PP plastic
Number of blades 4
Airflow direction A
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class “B”
Moisture (F) / Environmental (H)
protection class H1
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) < 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
With cable Axial
Protection class I (with customer connection of protective earth)
Conformity with standards CE
Approval EAC
