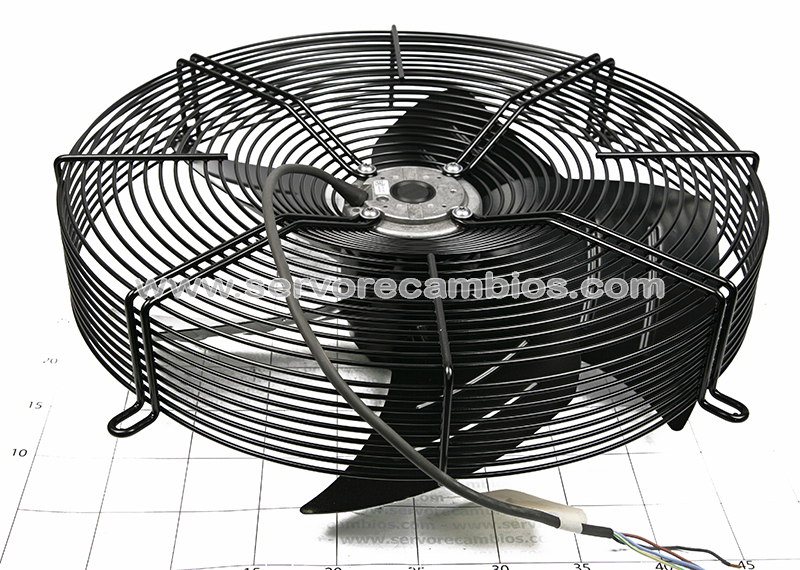

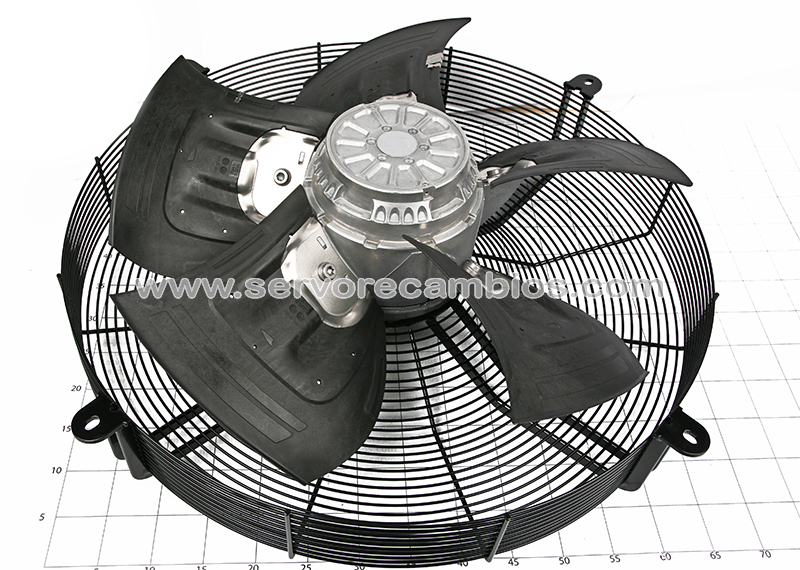

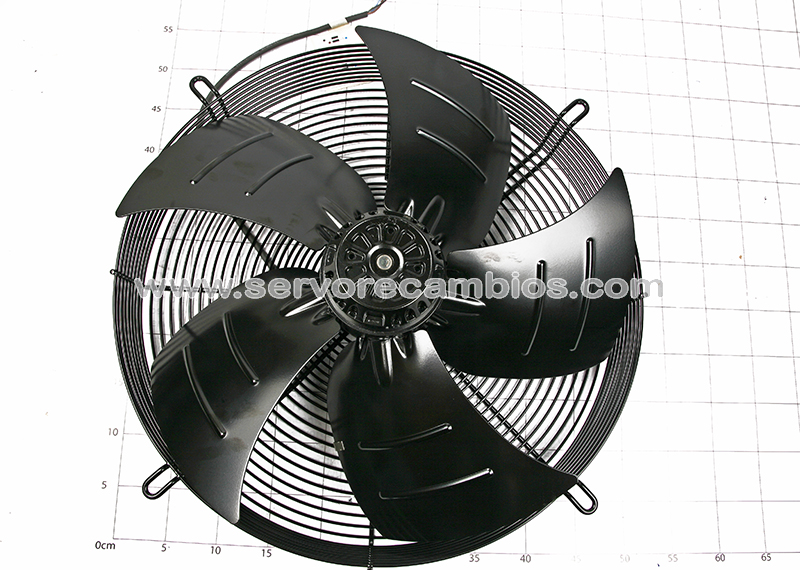

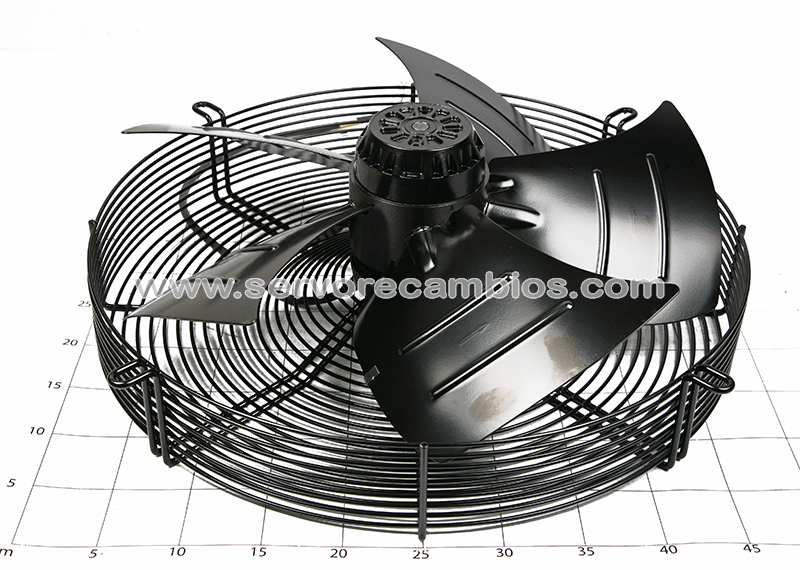

Type A6E450-AP02-01
Motor M6E074-GA
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Type of data definition fa fa
Valid for approval / standard CE CE
Speed min-1 940 1070
Power input W 165 225
Current draw A 0.8 0.98
Motor capacitor µF 4 4
Capacitor voltage VDB 450 450
Max. back pressure Pa 70 45
Max. ambient temperature °C 60 60
Starting current A 1.5 1.4
Mass 5.1 kg
Size 450 mm
Surface of rotor Coated in black
Material of impeller Sheet steel, coated in black
Number of blades 5
Direction of air flow “V”
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 44
Insulation class “F”
Humidity class F1-2
Max. permissible ambient motor temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
emp. (transp./storage)
– 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
