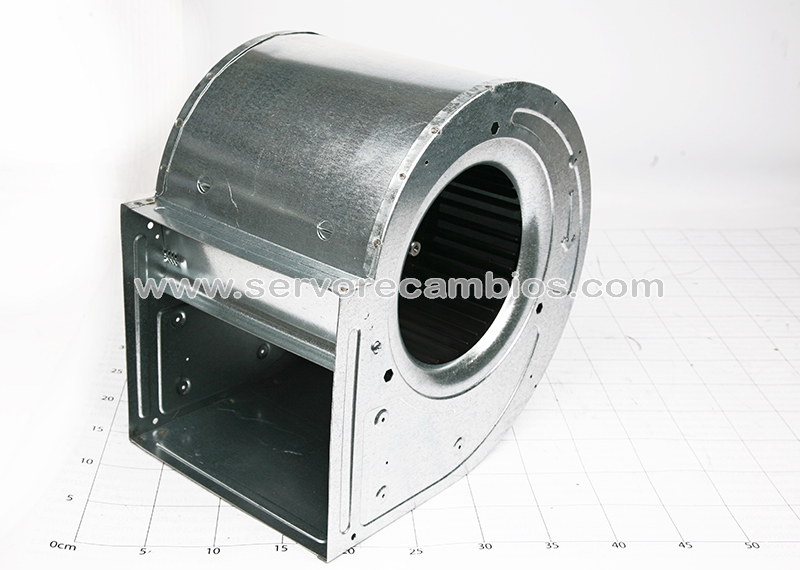

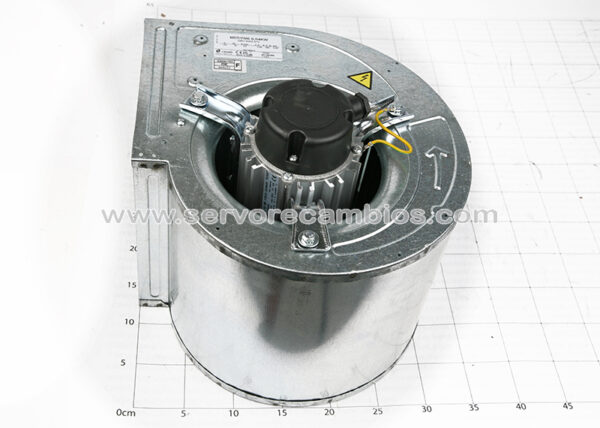

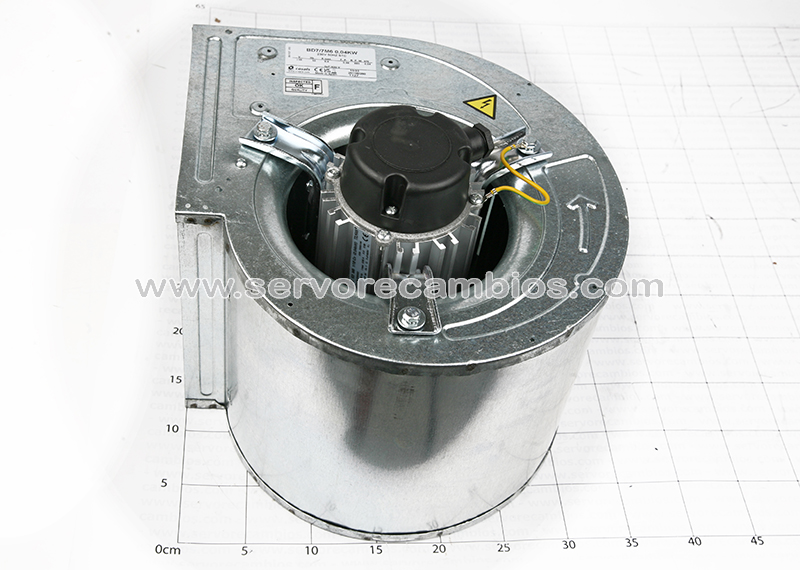

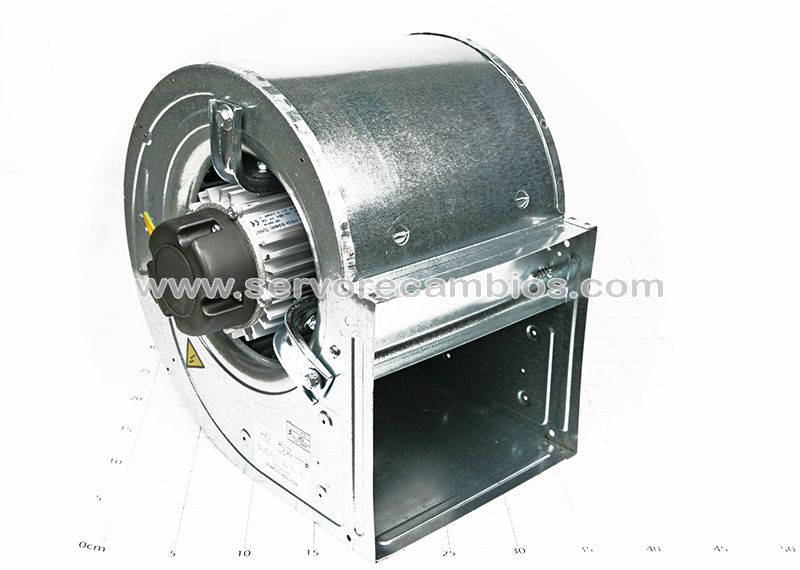

Double inlet fan
Constructive characteristics:
– Galvanized sheet metal casing.
– Fiberglass reinforced polyamide turbine for sizes 7/7, 9/9, 10/10 and 12/12. Other models in galvanized sheet.
– Multi-blade turbine with double inlet forward curved blades.
– The fan is supplied with support feet included in the price. Except 15/15 which is a cubic model.
– Casals exclusive system of fixing the motor to the fan and the turbine by means of bending arms which, together with silent blocks, prevent any type of vibration. Arms in compliance with ROHS 2002/95/EC (Restriction of Hazardous Substances in Electrical and Electronic Equipment).
– Casals exclusive design closed motors: extruded aluminum housing, connection set protected inside the terminal box integrated in the motor IP 65. Motor with IP54 protection and class F insulation. Standard voltages 230V 50Hz for single-phase models and 230/400V 50Hz for three-phase models.
– Single-phase motors adjustable by voltage. Three-phase models adjustable by frequency inverter.
Applications:
Designed to be integrated in equipment:
– Ventilation boxes and air handling units.
– Centrifugal fan heaters.
– Industrial and professional kitchen hoods. Use in supply or extraction with previous grease filtering.
– Maximum continuous working temperature: 50ºC for single-phase motors and 60ºC for three-phase motors.
Maximum flow 1080 m³/h
Power 0.04kw
Revolutions 885Rpm
Maximum current at 230V 0.6 A
Fans capacitor 3µF 400V
Mass 9Kg
