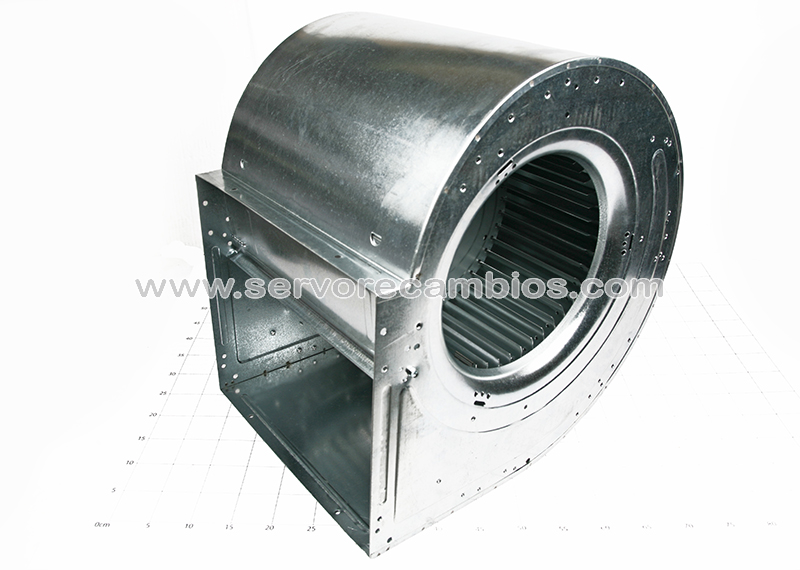

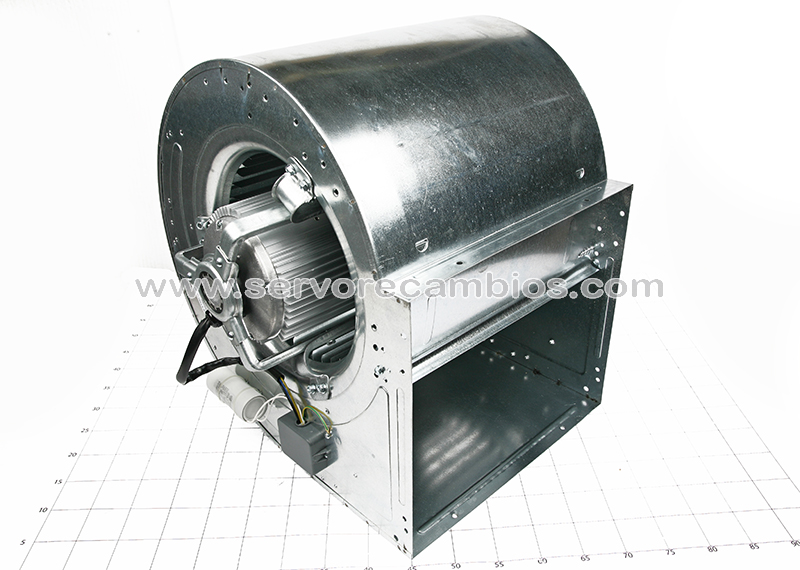

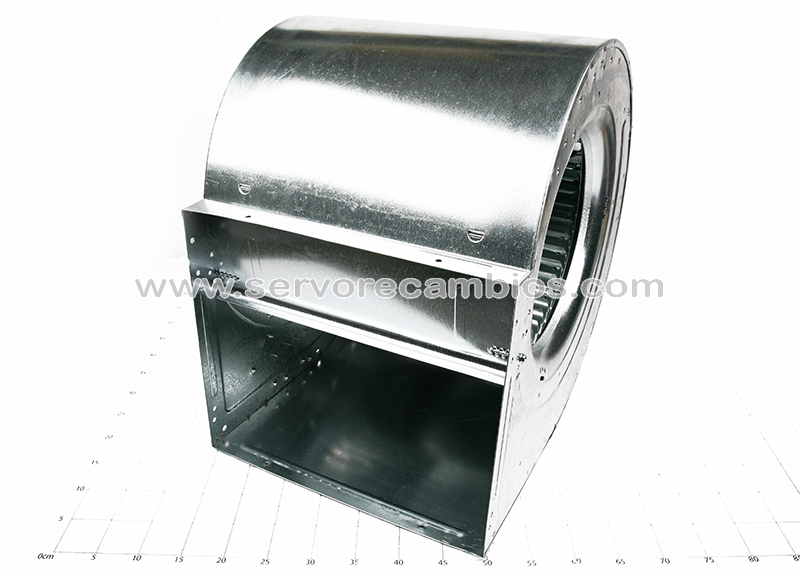

Range of double inlet direct driven low pressure centrifugal fans manufactured from galvanised sheet steel. All the models are fitted with forward curved centrifugal impellers manufactured from galvanized sheet steel.

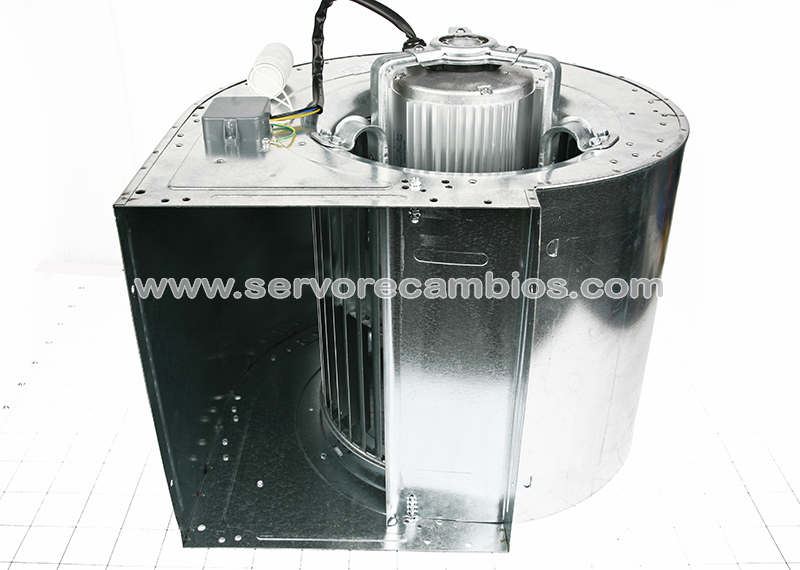

Motors Housing closed motors, IP44, class F, equipped with thermal protection and ball bearings greased for life. Electrical supply: 4 or 6 pole depending on version. Single phase 230V-50Hz (capacitor fitted on the fan housing). Three phase 230/400V-50Hz.
Type CBM-12/12 736W 6P C VR
Speed (poles) 6
Motor power (W) 736
IP44 protection
Capacitor (µF/V) 20/450
Maximum absorbed current (A) 6
Maximum flow rate (m3/h) 4,960
Maximum air temperature (ºC) +40
Sound pressure level (dB(A)) 67
Mass (kg) 26.5
Optional voltage regulator REB 10 / RMB 8
