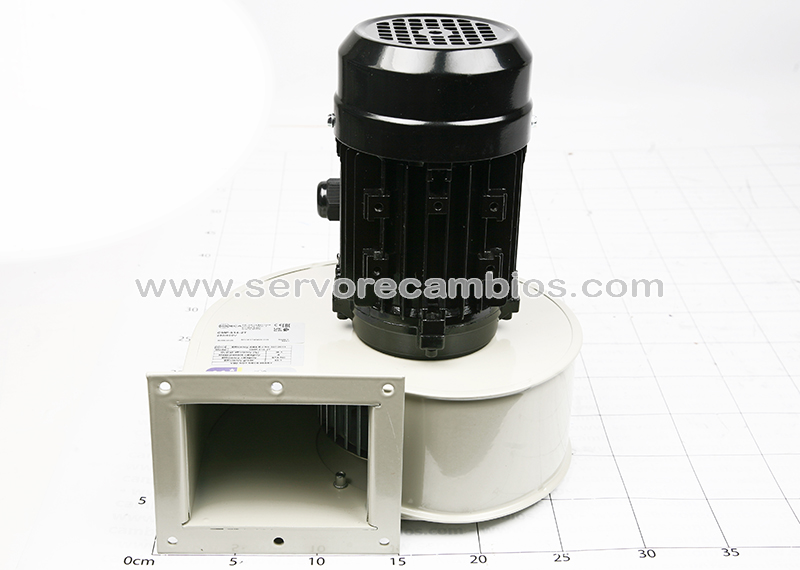

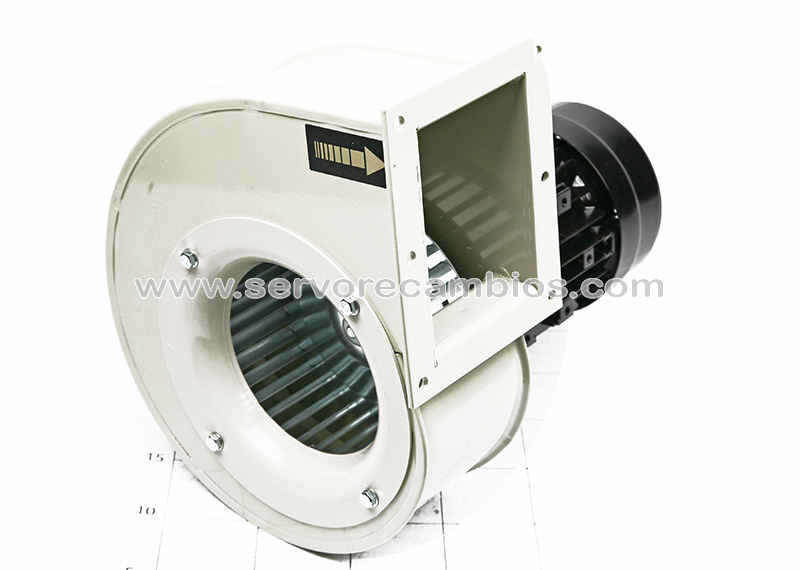

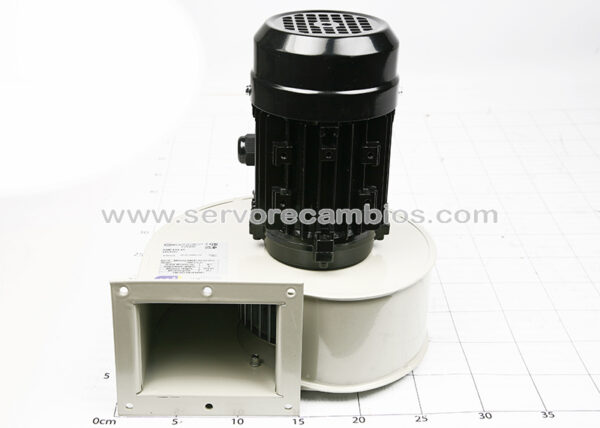

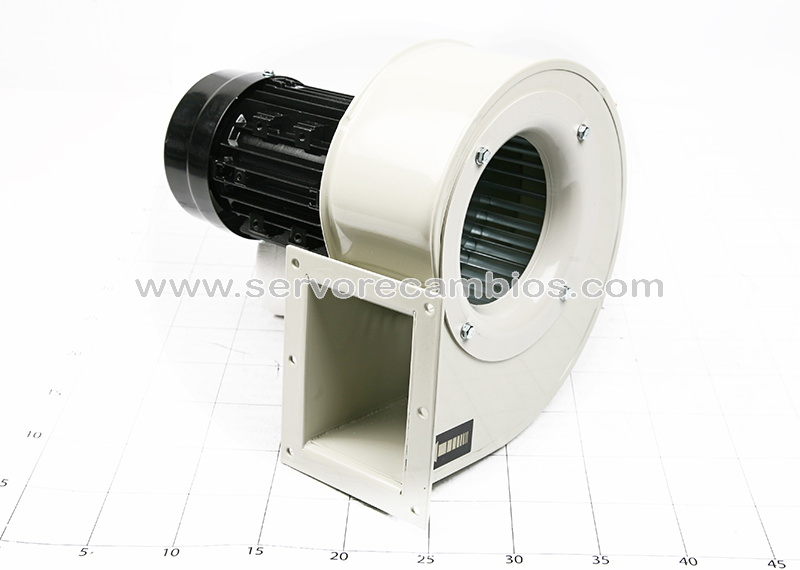

CMP-514-2T

Single inlet medium pressure centrifugal fans with sheet steel casing and impeller
Fan:
• Sheet steel casing, except models 38-2M and 380 in cast aluminum.
• Forward curved impeller in galvanised sheet steel.
• Maximum temperature of air to be carried: -25 ºC +120 ºC, maximum +100 ºC models 38-2M and 380.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection except single-phase models with IP54 protection. Models 38-2M and 380 with IP21 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Type CMP-514-2T
Speed 2750Rpm
Maximum admissible current 230V 1.21A 400V 0.70A
Installed power 0.18Kw
Maximum flow rate 700 m3/h
Sound pressure level 65 dB(A)
Mass 5Kg
According ErP 2015
