Fan:
• Steel sheet casing, except for models 38-2M and 380, which are made of cast aluminum.
• Galvanized steel sheet impeller.
• Maximum temperature of the air to be transported: -25°C to +120°C, maximum +100°C for models 38-2M and 380.
Motor:
• IE3 efficiency motors for power ratings equal to or greater than 0.75 kW, except single-phase, 2 speeds and 8 poles.
• Class F motors with ball bearings and IP55 protection. Except single-phase models with IP54 protection. Models 38-2M and 380 with IP21 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (power ratings above 4 kW).
• Operating temperature: -25 °C to +50 °C.
Finish:
• Anti-corrosive polyester resin polymerized at 190 °C, after degreasing with phosphate-free nanotechnology treatment.

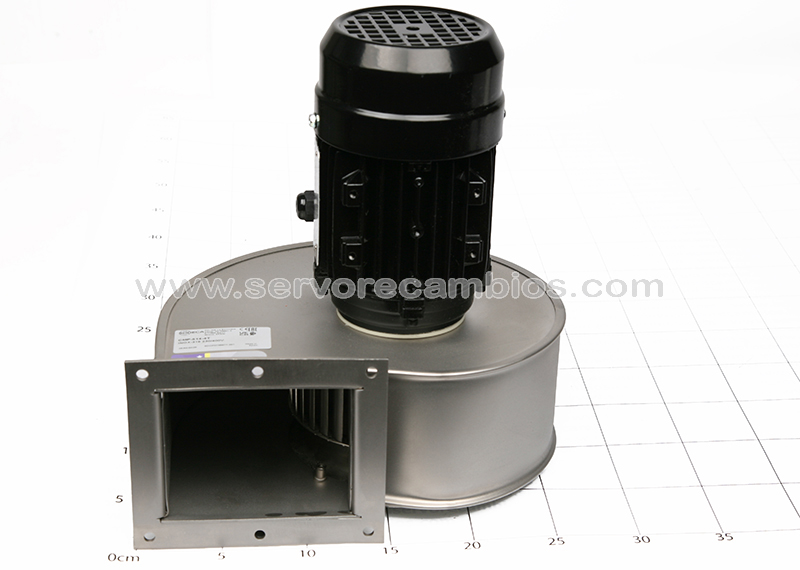

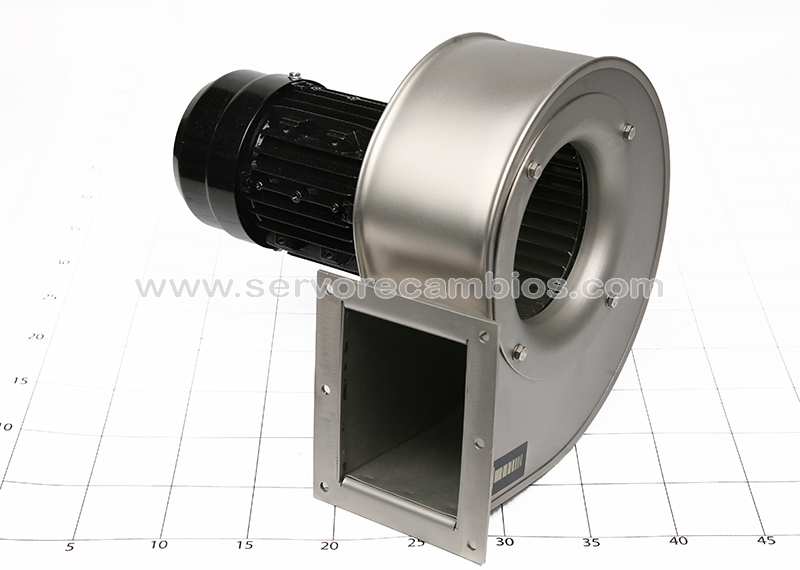

Type CMP-514-4T
Maximum airflow (m³/h) 565
Speed (rpm) 1320
Maximum permissible current (A) 230V 0.65 400V 0.38
Installed power (kW) 0.09
Maximum flow rate (m³/h) 565
Sound pressure level dB (A) 58
Weight (Kg) 5
