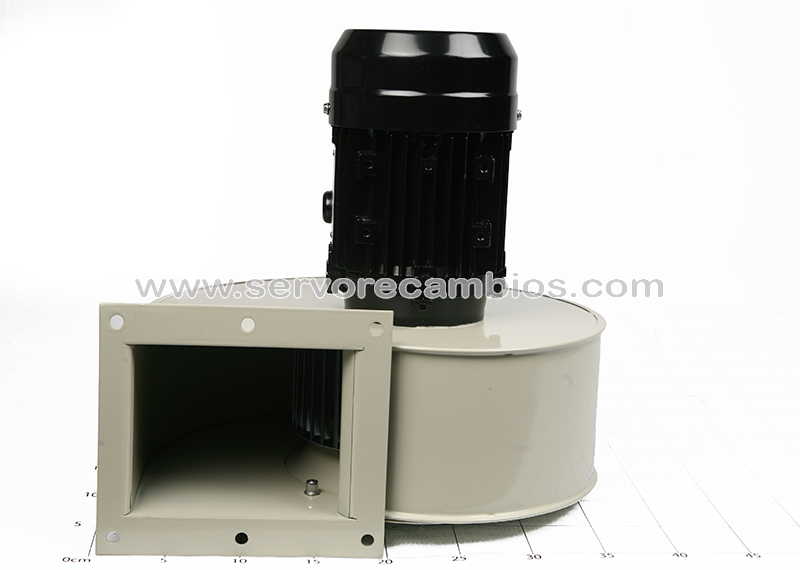

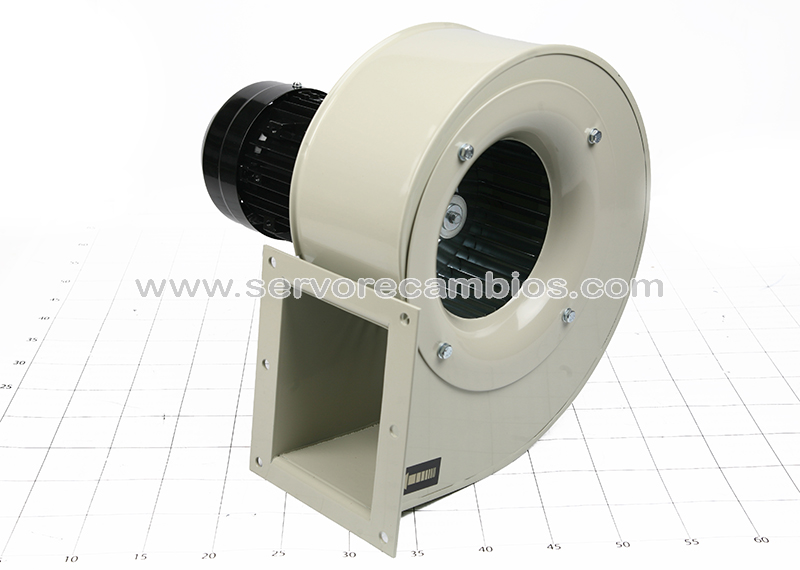

CMP-718-4T

Fan:
• Sheet steel casing.
• Galvanised sheet steel impeller.
• Model CMP 38-2M with cast aluminium casing.
• Maximum temperature of air to be transported: -20 ºC to +120 ºC, maximum +100 ºC for model CMP-38.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2 speeds and 8 poles.
• Class F motors with ball bearings and IP55 protection. Except single-phase models with IP54 protection. Model CMP-38 with IP21 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
Finish:
• Anti-corrosive in polyester resin polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
Type CMP-718-4T
Speed (rpm) 1350
Maximum permissible current (A) 230V 1.66 400V 0.96
Installed power (kW) 0.25
Maximum flow rate (m³/h) 1280
Sound pressure level dB (A) 63
Weight (kg) 10
According to ErP 2015
