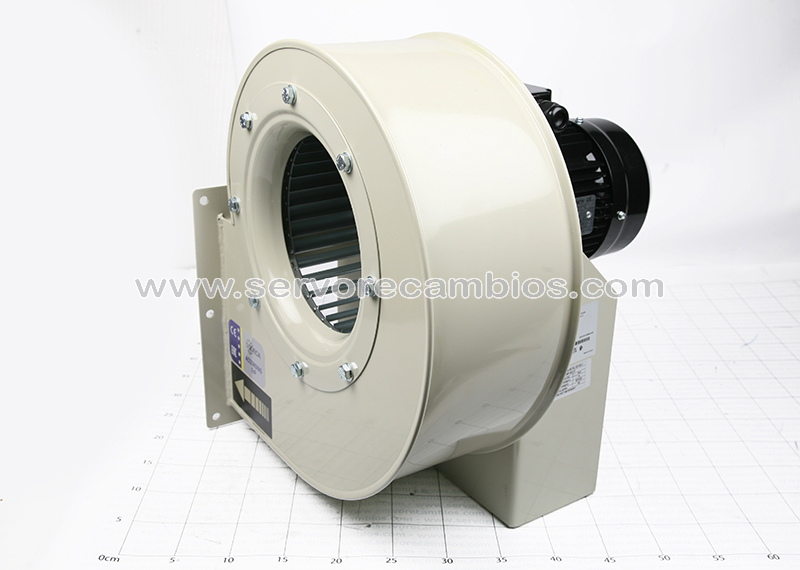

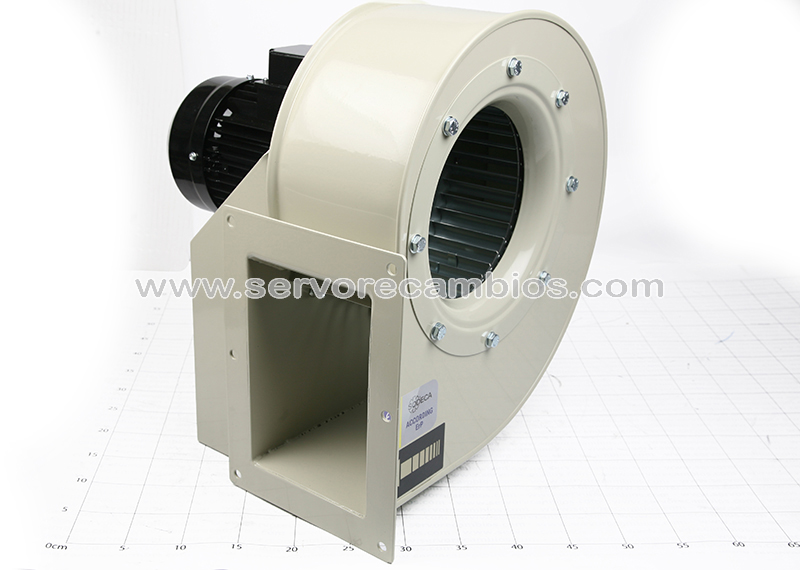

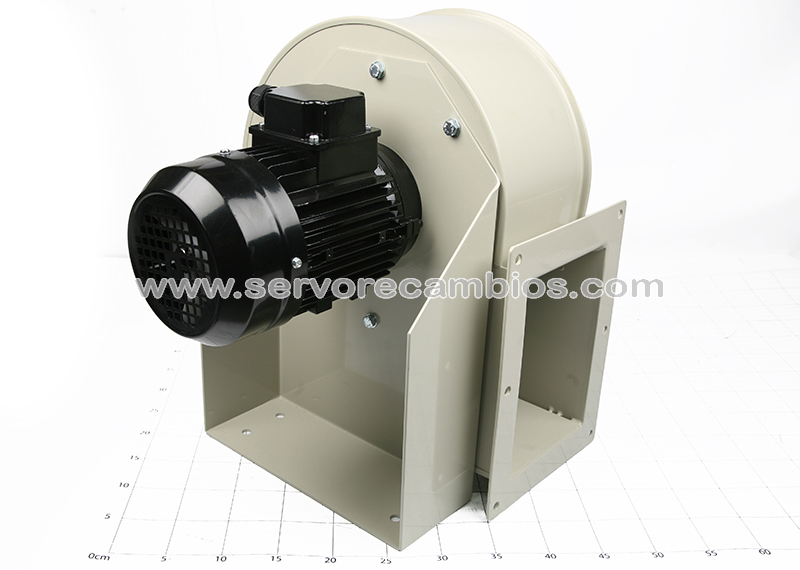

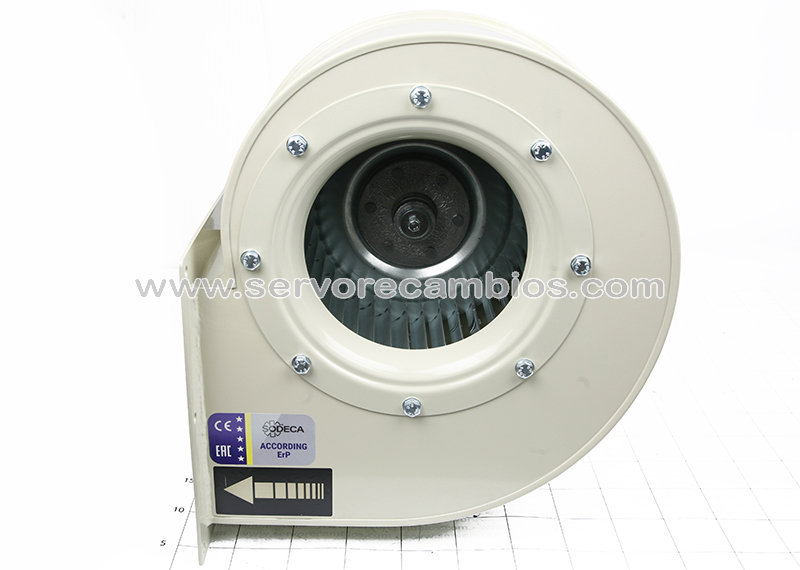

CMP-922-4T

•    Model CMP 38-2M with cast aluminium casing.
•    Maximum temperature of air to be transported: -20 ºC to +120 ºC, maximum +100 ºC for model CMP-38.
Motor:
•    Motors    with    IE3    efficiency    for    powers equal to or greater than 0.75 kW, except single-phase,  2 speeds and 8 poles.
• Class F motors with ball bearings    and    IP55 protection.    Except    single-phase models with IP54 protection. Model CMP-38 with IP21 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
Finish:
•    Anti-corrosive in polyester resin polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
