Range of centrifugal single inlet fans suitable for continuous extraction of airstreams temperature up to 80ºC or 110ºC (Series 1) or 150ºC (Series 2 and 3).
All casings are manufactured from electro-welded sheet steel protected against corrosion by grey epoxy-polyester paint coating.
All models incorporate forward curved centrifugal impellers manufactured from galvanised sheet steel.
Available, depending upon the model, with single or three phase motors in 2, 4 or 6 poles.
Motors
All motors are IP55, Class F (1) with ball bearings greased for life. Electrical supply: Single phase 230V-50Hz. Three phase 230/400V-50Hz up to 3kW.
Three phase 400V-50Hz, for higher power motors. (See characteristics chart).
Series 1 are equipped with B14 flange mounted motor.
Series 2 & 3 are equipped with B3 foot mounted motor.

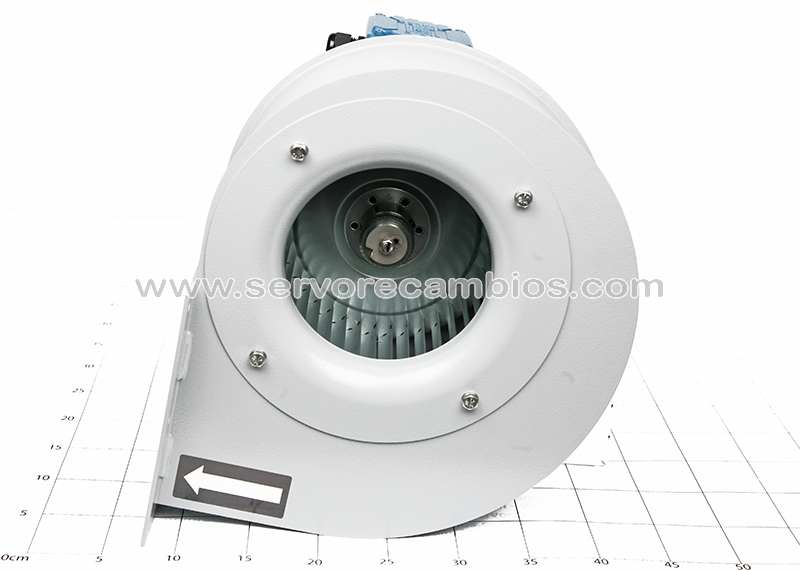

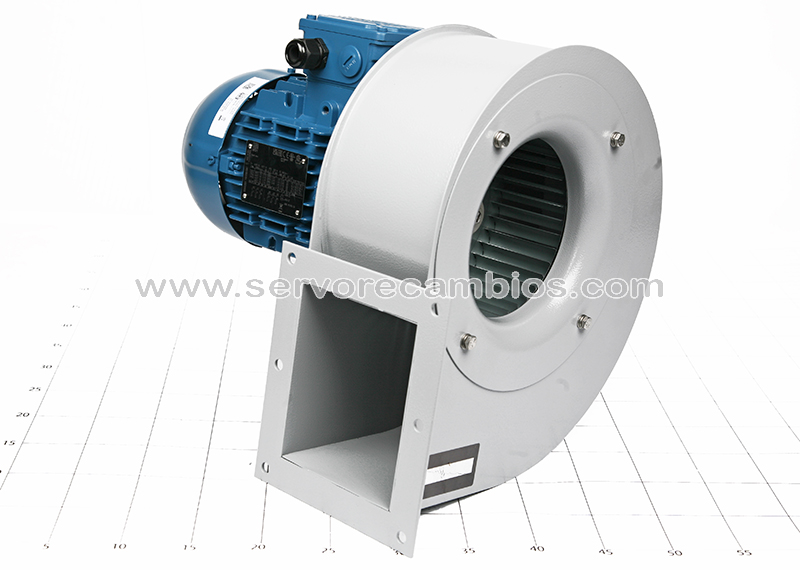

Type CMB/2-180/75 – 0,75
Speed (rpm) 2800
Protection IP55
Motor class F
Motor power (kW) 0,75
Maximum absorbed current (A) 230 V 3,3 / 400 V 1,9 THREE PHASE 2 POLE
Maximum airflow (m3/h) 1.800
Sound pressure level (dB(A)) 71
Mass (kg) 14,7
Air maximum temperature (ºC) 110
Speed controller VFTM TRI 0,75
