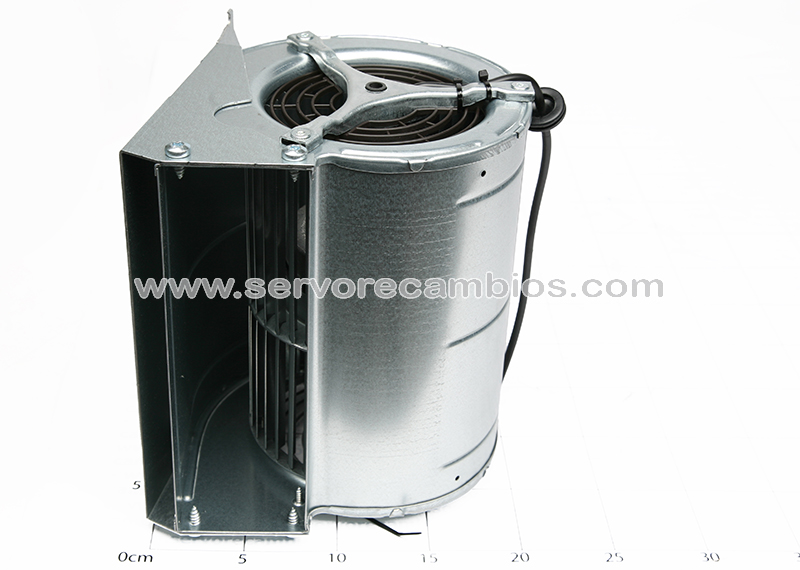

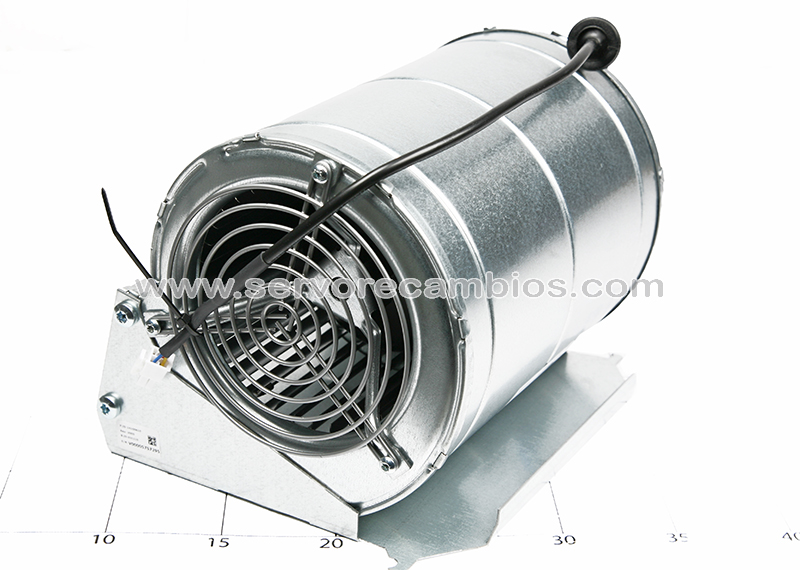

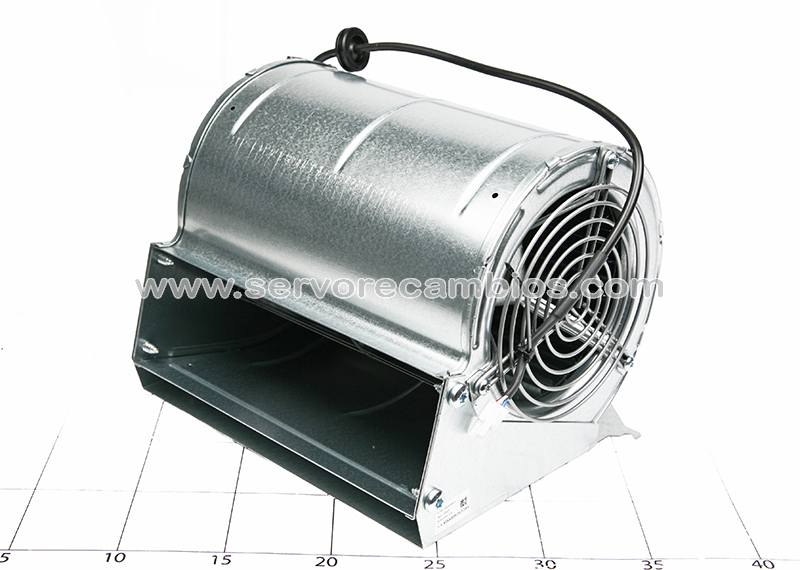

D1G133-AB39-22

Type D1G133-AB39-52
Motor M1G074-BF
Nominal voltage VDC 48
Nominal voltage range VDC 36 .. 57
Frequency Hz –
Type of data definition fa
Speed min-1 1780
Power input W 105
Current draw A 2.8
Min. ambient temperature °C -25
Max. ambient temperature °C 60
Mass 2.8 kg
Size 133 mm
Surface of rotor Coated in black
Material of impeller Sheet steel, galvanised
Housing material Sheet steel, galvanised
Motor suspension Motor mounted anti-vibration on both sides
Direction of rotation Clockwise, seen on rotor
Type of protection IP 42
Insulation class “B”
Humidity class F0
Max. permissible ambient motor
temp. (transp./ storage) +80 °C
Min. permissible ambient motor
temp. (transp./storage) -40 °C
Mounting position Any
Condensate discharge holes None
Operation mode S1
Motor bearing Ball bearing
Technical features – Tach output
– Motor current limit
– Soft start
– Control input 0-10 VDC / PWM
EMC interference immunity Acc. to EN 61000-6-2 (industrial environment)
EMC interference emission Acc. to EN 55022 (Class B, household environment)
Motor protection Reverse polarity and locked-rotor protection
Cable exit Variable
Product conforming to standard EN 60950-1
Approval UL 1004-1; CCC; EAC; CSA C22.2 Nr.77
