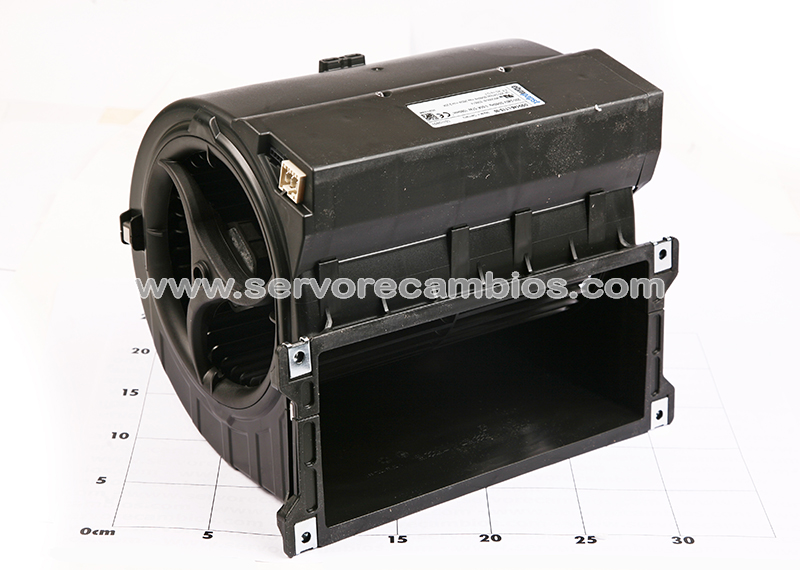

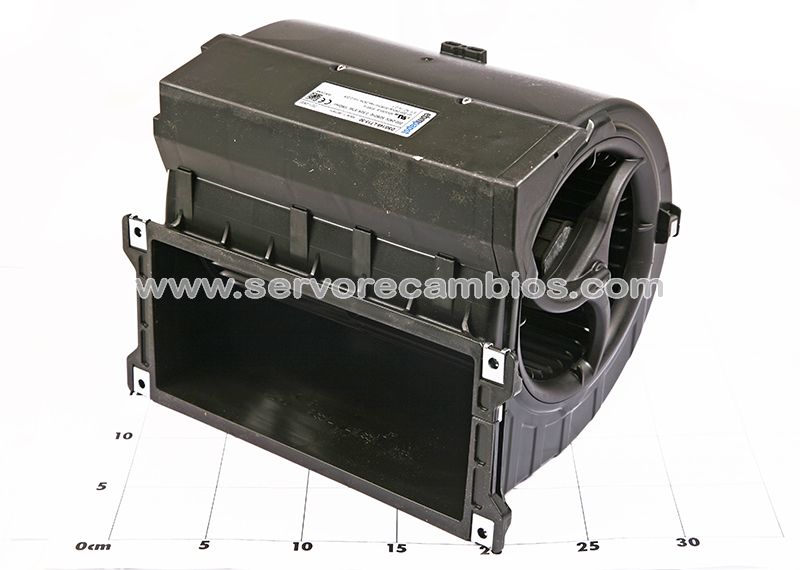

D3G146-LT13-30

Type D3G146-LT13-30
Motor M3G055-BI
Phase 1~
Nominal voltage VAC 230
Nominal voltage range VAC 200 .. 240
Frequency Hz 50/60
Data storage type mb
Revolutions min-1 1060
Power consumption W 57
Current consumption A 0.5
Min. ambient temperature °C -25
Max. ambient temperature °C 60
Weight 2.2 kg
Dimensions 146 mm
Motor size 55
Rotor surface Galvanized
Electronic housing material PP plastic
Impeller material PP plastic
Housing material PP plastic
Motor suspension Motor fixed on both sides, isolating it from vibrations
Direction of rotation Counterclockwise, viewed from the rotor
Type of protection Motor IP00, electronics IP20; depending on installation and location
Insulation class “F”
Humidity (F) / environmental protection class (H)
H0 – dry environment
Permissible ambient temperature
max. permissible motor (transport/storage) + 80 °C
Permissible ambient temperature
min. permissible motor (transport/storage) – 40 °C
Permissible ambient temperature
min. permissible motor (transport/
storage) – 40 °C
Mounting position Any
Condensation water holes None, open rotor
Cooling/opening hole Rotor and stator side
Operating mode S1
Motor bearing Ball bearing
Technical characteristics – Output 10 VDC, max. 1.1 mA
– Tachometric output
– Motor current limitation
– Soft start
– Control input 0-10 VDC/PWM
– Control interface with safe SELV potential, separated from the mains
– Motor protected against overtemperature
EMC interference resistance Compliant with EN 61000-6-2 (industrial sector)
EMC harmonics Compliant with EN 61000-3-2/3
EMC interference emission Compliant with EN 61000-6-3 (domestic environment)
Contact voltage in accordance with
IEC 60990 (measurement connections
figure 4, TN system) <= 3.5 mA
Electrical connection Connector
Motor protection Thermocontact (TOP) connected internally
Cable outlet Variable
Degree of protection I (when the protective conductor is connected by the customer)
Product complies with EN 60335-1; CE
Certification CSA C22.2 No. 77 + CAN/CSA-E60730-1; UL 1004-7 + 60730-1
