Type FB045-4DK.4F.V4S
Article number 120451

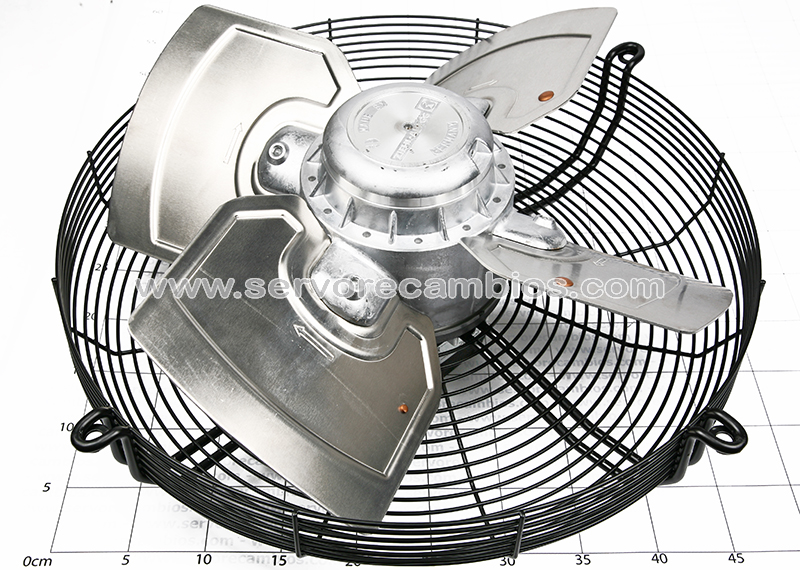

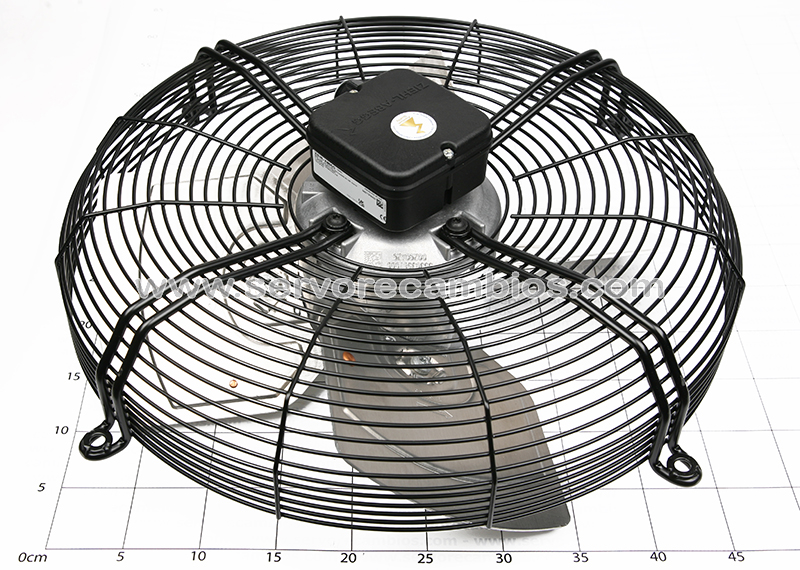

Designation Axial fan with sheet blades
Measurement data
3~230/400V±10% D/Y 50Hz P1 0.64kW
2.10/ 1.20A ΔI=0% 1370/min COSY 0.78
Electrical connection Terminal box K62
Minimum operating temperature °C -40
Protection type IP54
Thermal insulation class THCL155
Motor protection thermal contact
Impregnation Moisture and hot climate protection
Bearing quality ball bearing with long-time lubrication
Rotor material Aluminium
Rotor paint unpainted
Blade material Aluminium
Mass kg 9.20
ErP data
Efficiency ηstatA: 31.9%
Efficiency grade: Nactual = 40.3 / Ntarget = 40*
Frequency inverter required
*ErP 2015
