Type FB050-VDA.4I.V4L
Article number 120188

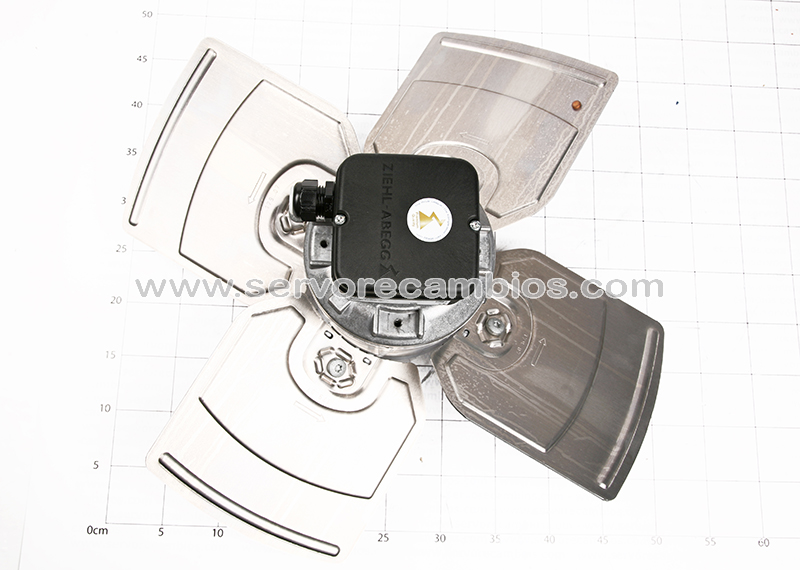

Description Axial fan with laminated blades.
Fan design without additional parts.
Nominal values
3~400 V D/Y 50 Hz P(1) 0.62/0.40 kW
1.5/0.73 A ΔI=0 % 1330/1100/min COSY 0.60 70 °C
3~400 V D/Y 60 Hz P(1) 0.92/0.55 kW
1.75/0.95 A ΔI=0 % 1470/1090/min COSY 0.76 60 °C
460 V D/Y 60 Hz P(1) 0.99/0.64 kW
1.75/0.96 A ΔI=0% 1540/1210/min COSY 0.71
60 °C
Electrical connection Terminal box K62
ErP compliance 2026-Status: Non-compliant
ErP data ErP measurement category: A
Air flow q(v) at Eta opt: 4555 m3/h
Pressure increase p(fs) at Eta opt: 125 Pa
Power input P(1) at Eta opt: 510 W
Efficiency Η(statA): 32.0 %
Efficiency rating: N(actual) = 40.2 / N(target) = 40*
*ErP 2015
Thermal class THCL155
Motor protection Thermal contact
Protection type IP54
Impregnation Protection against moisture and hot weather
Bearing quality Ball bearing with long-life lubrication
Nameplate 1x fixed
Condensation drain holes Several Open stator/rotor condensation drain holes
Terminal box mounting Mounted on the stator
Number of blades 4
Blade configuration L
Instruction manual L-BAL-F001
Weight 9.20 kg
Minimum operating temperature -40 °C
