FB063-8EK.4I.V4S-108507E

Type FB063-8EK.4I.V4S
Article number 108507E

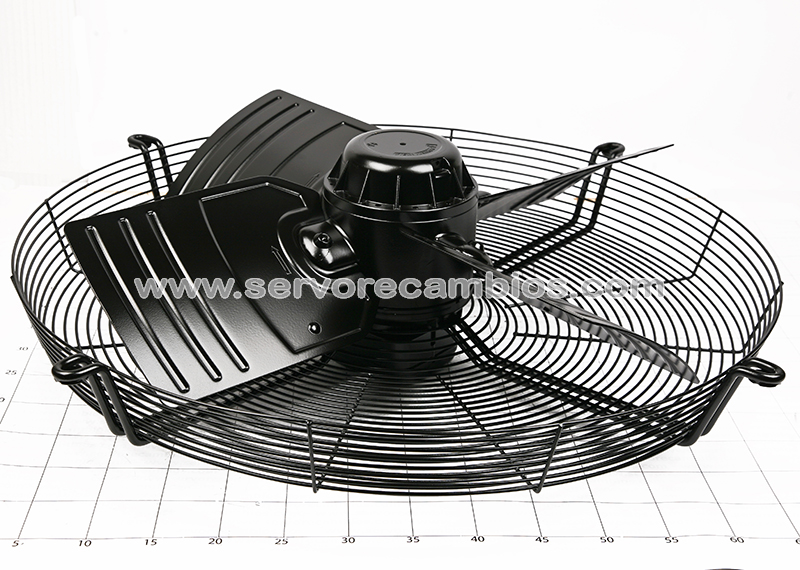

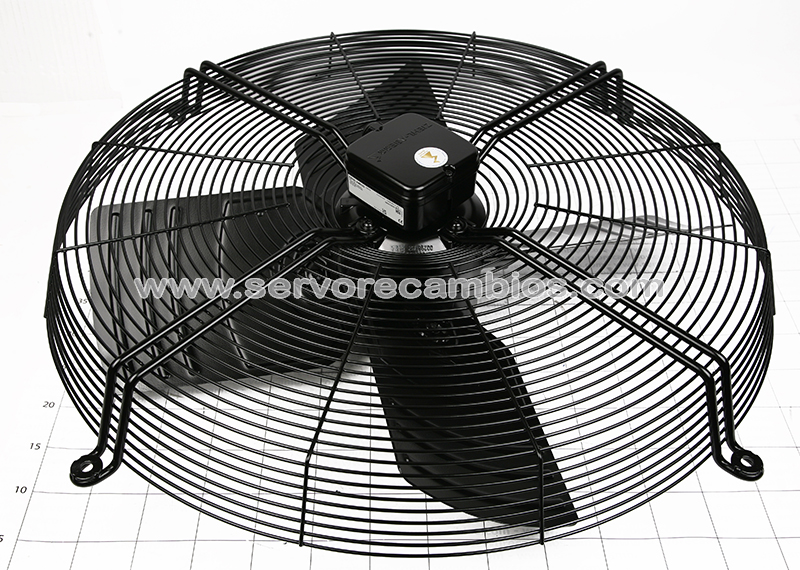

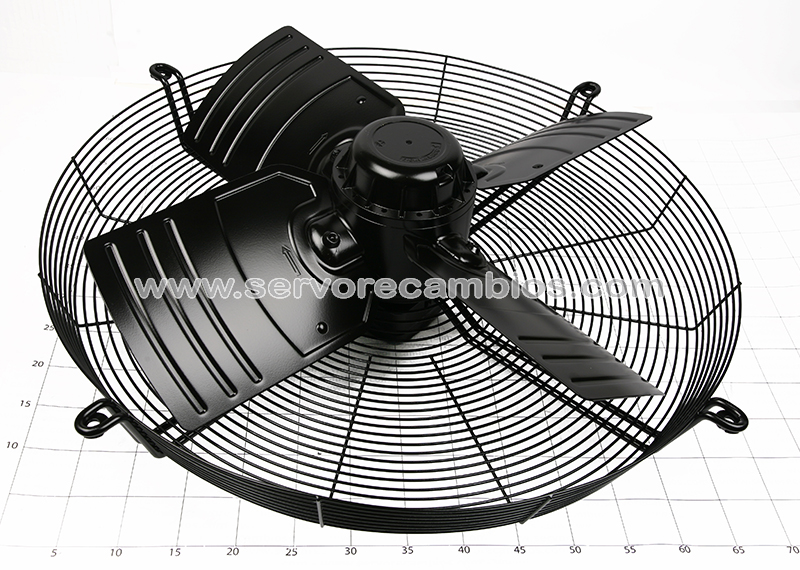

Designation Axial fan with sheet blades
Fan design with guard grille for short bell mouth
Rated values
1~230V 50Hz P(1) 360W
1.7A ΔI=0% 600/min 8.0uF/400V 60°C
Hz
ErP Data does not fulfil current requirements of the ErP
directive
Thermal class THCL155
Motor protection thermal contact
Type of protection IP54
Impregnation Moisture and hot climate protection
Quality of bearings ball bearing with long-time lubrication
Condens. drain holes Condensation drain holes stator/rotor open
Guard grille type Miscellaneous ring grill
Number of blades 4
Blade setting S
Mass 12.80 kg
Min. operating temperature -25°C
Disclaimer CT20/DOE Selected product is not governed by U.S. DOE and
CT20 industrial fan and blower regulations.
