FC056-4DF.4I.A7-132301

Type FC056-4DF.4I.A7
Article number 132301

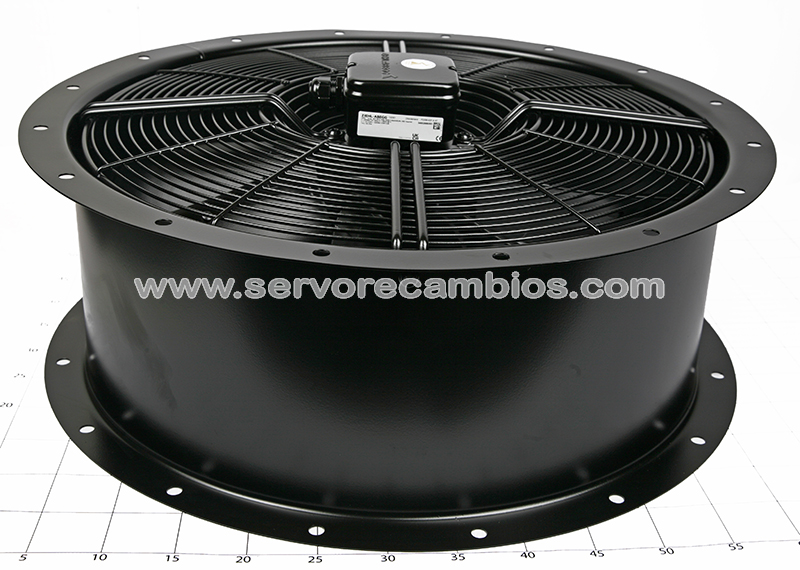

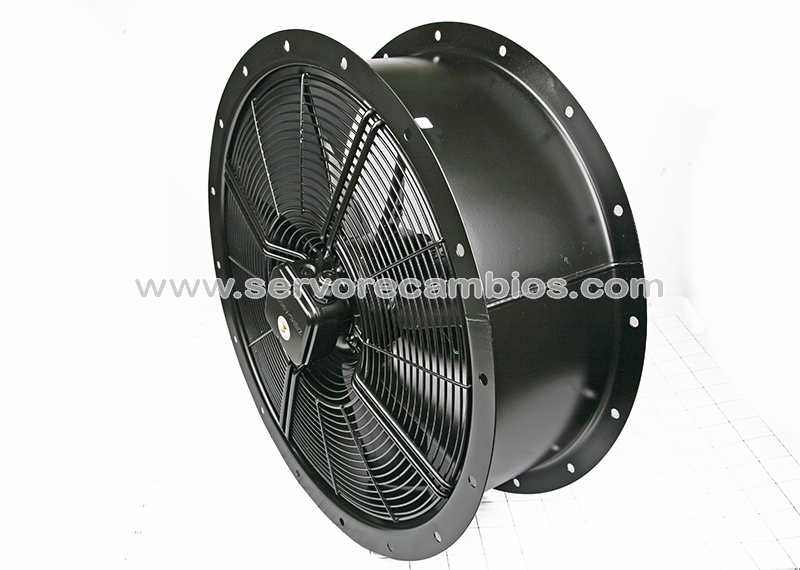

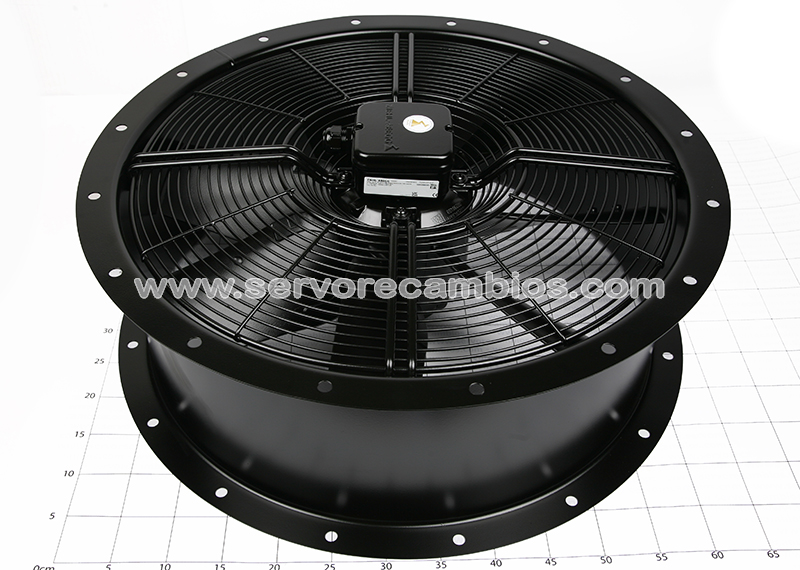

Designation Axial fan with diecast blades
Rated values
3~230/400V ±10% D/Y 50Hz P1 1.00kW
3.1/1.8A ∆I=0% 1220/min COSY 0,80 60°C
Electrical connection Terminal box K62
ErP Data
Measurement category ErP: A
Air flow qv on Eta opt: 8216 m3/h
Pressure increase pfs on Eta opt: 138 Pa
Input power P1 on Eta opt: 990 W
Efficiency ηstatA: 33.9 %
Efficiency grade: Nactual = 40.3 / Ntarget = 40*
Frequency inverter required
*ErP 2015
Type of protection IP54
Thermal class THCL155
Mounting type terminal box Mounted on Stator
Connection diagram 1360-106XB
Rating plate 1x fixed
Motor protection thermal contact
Impregnation Moisture and hot climate protection
Condensation Condensation water holes in stator/rotor open
Quality of bearings ball bearing with long-time lubrication
Material Rotor Aluminium
Material blades Aluminium
Guard grille type ring grill
Weight 18.40 kg
