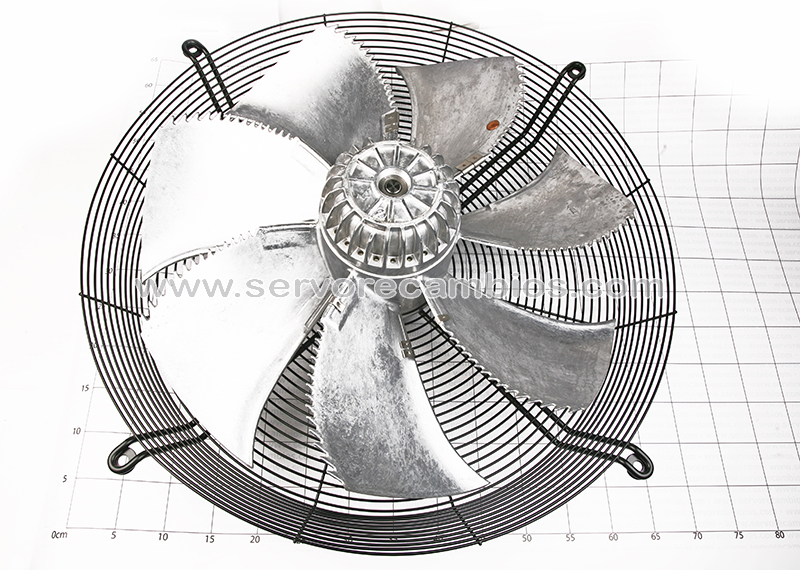

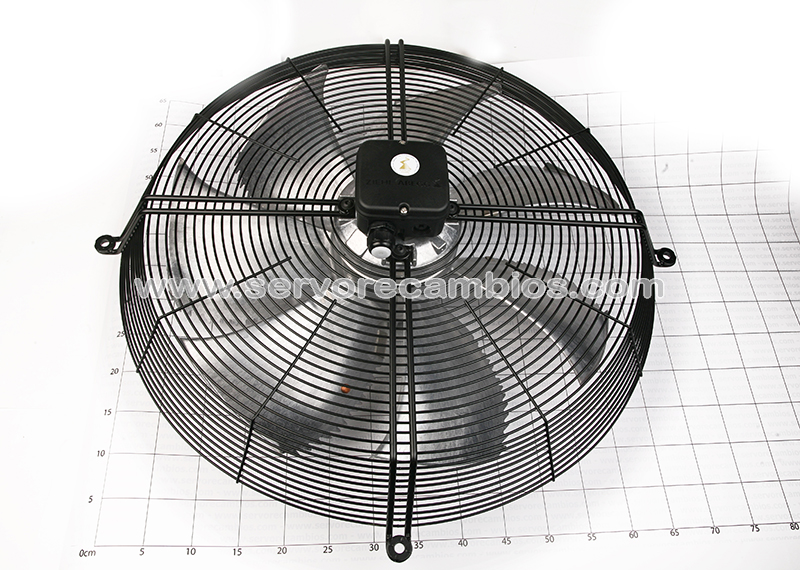

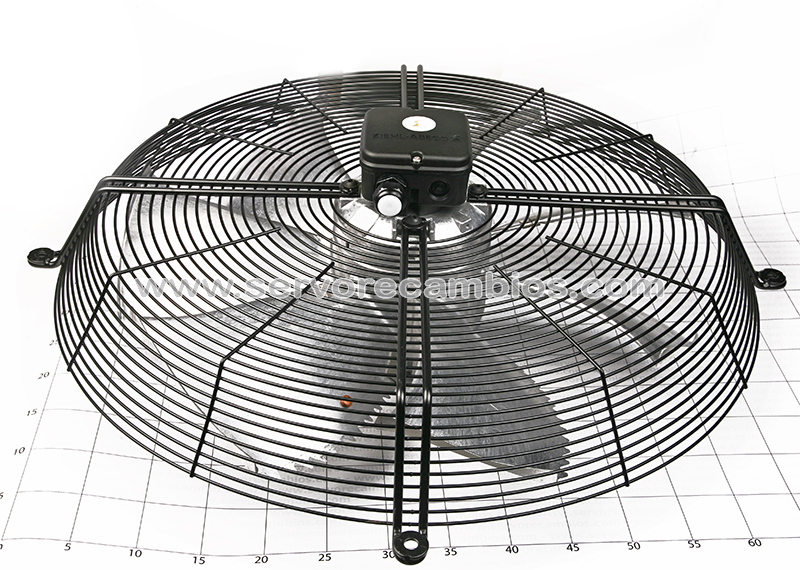

FN056-VDW.4M.A7P2 – 160379

Type FN056-VDW.4M.A7P2
Article number 160379
Denominación Axial fan with sickle blades
Protection class IP54
Motor protection thermal contact
Impregnation Moisture and hot climate protection
Condensation water holes in stator/rotor open
Bearing quality ball bearing with long-time lubrication
Rotor material Aluminium
Blade material Aluminium
Grill type ring grill
Mass 15,40Kg
Datos de medición
3~400V ±10% D/Y 50Hz P1 1.05/0.58kW
2.2/1.1A ΔI=0% 1280/910/min COSY 0,68 70°C
3~400V±10% D/Y 60Hz P1 1.35/0.58kW
2.6/1.15A ΔI=0% 1320/830/min COSY 0,73 55°C
3~460V±10% D/Y 60Hz P1 1.55/0.72kW
2.70/ 1.25A ΔI=0% 1430/950/min COSY 0,72 55°C
