FN063-6DK.4I.V7P1-157309

Type FN063-6DK.4I.V7P1
Product No. 157309

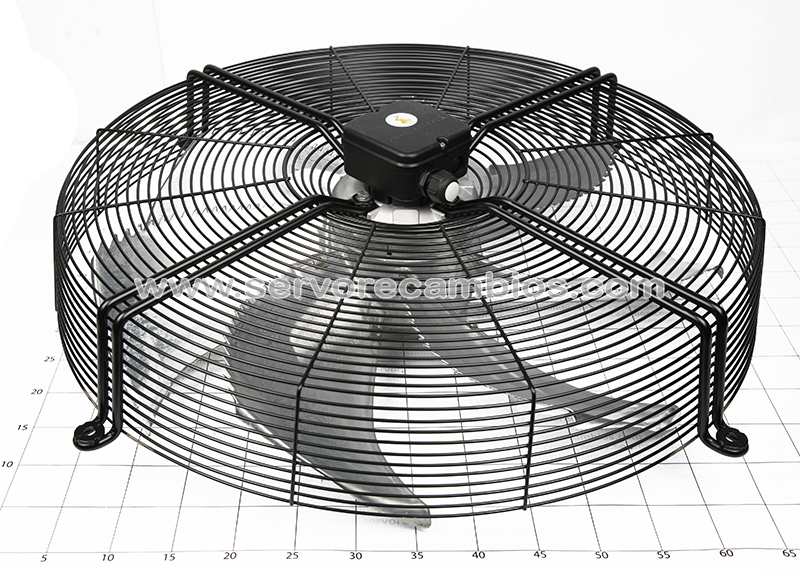

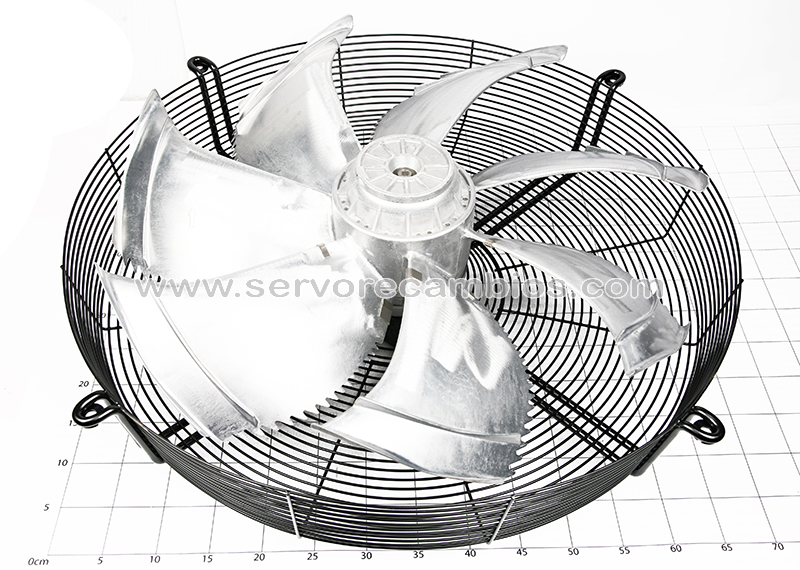

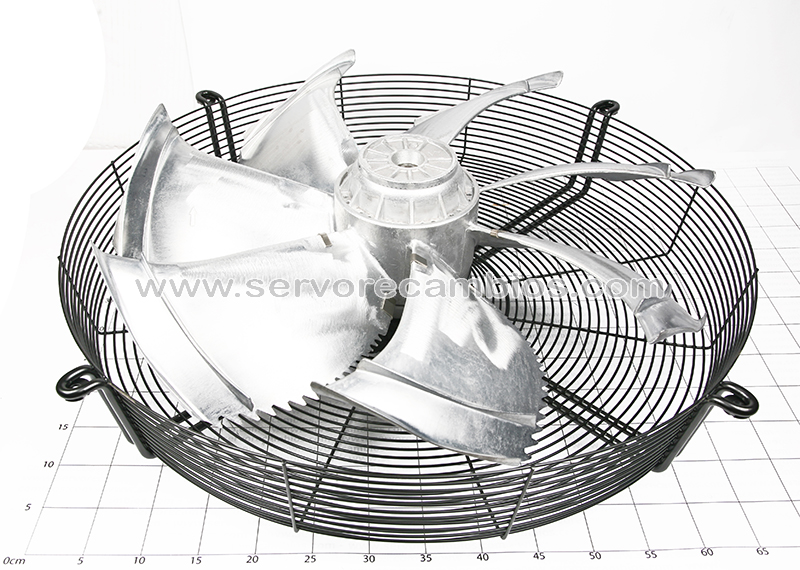

Designation Axial fan with sickle blades
Measurement data
3~230/400V±10% D/Y 50Hz P1 0.63kW
2.20/ 1.25A ∆I=15% 900/min COSY 0.72 70°C
3~230/400V±10% D/Y 60Hz P1 0.94kW
2.80/1.60A ∆I=5% 980/min COSY 0.85 50°C
3~265/460V±10% D/Y 60Hz P1 1.00kW
2.70/ 1.55A ∆I=5% 1030/min COSY 0.82 50°C
Electrical connection Terminal box K62
Minimum operating temperature °C -40
Terminal box mounting type Mounted on Stator
Protection type IP54
Thermal insulation class THCL155
Connection diagram 1360-106XA
Nameplate 1x fixed
Mounting position H/Vu/Vo
Motor protection thermal contact
Impregnation Moisture and hot climate protection
Bearing quality ball bearing with long-time lubrication
Rotor material Aluminium
Rotor paint unpainted
Blade material Aluminium
Impeller paint unpainted
Grille type ring grill
Control —
Other All connecting elements in stainless steel.
Motor suspension paint Motor suspension powder-coated
Consistency class 2
Suspension color RAL 9005 (jet black)
Weight kg 15.40
ErP data Efficiency ηstatA: 33.8%
Efficiency grade: Nactual = 41.6 / Ntarget = 40*
*ErP 2015
