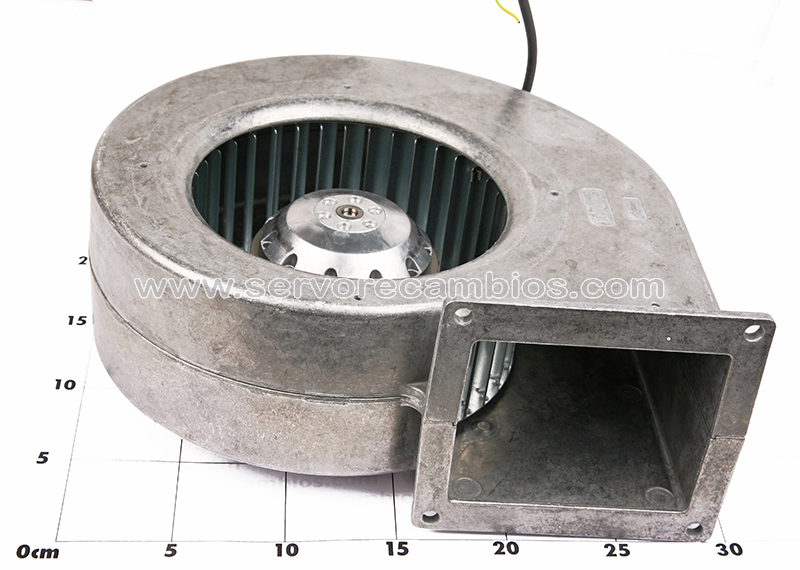

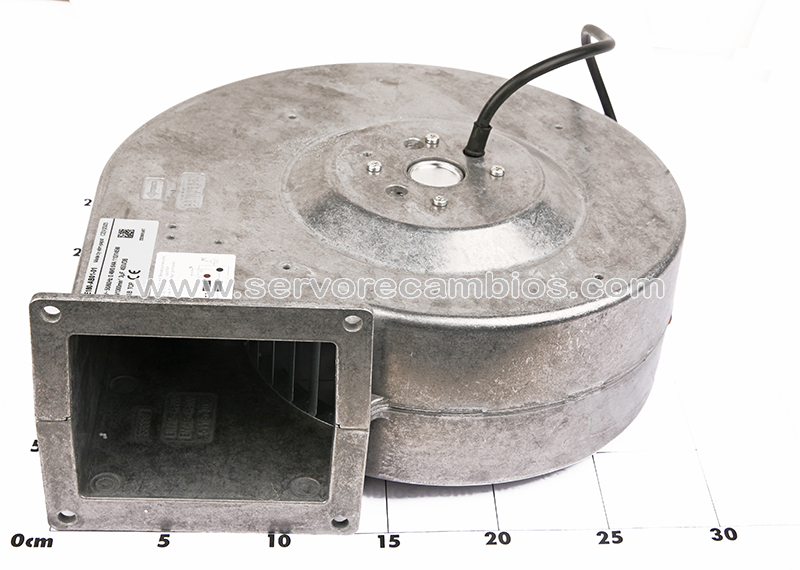

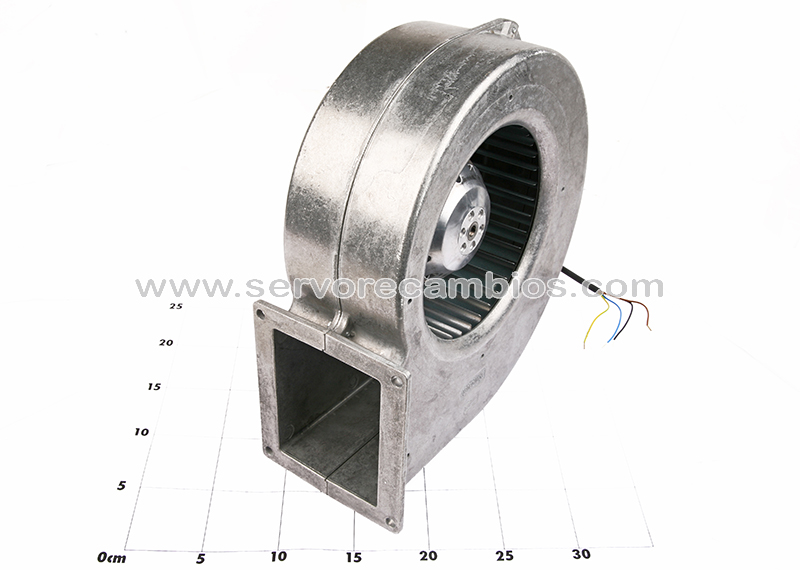

G4E180-AB01-01

Type G4E180-AB01-01
Motor M4E068-DF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Data setting type col. col.
Valid for certification/standard CE CE
Revolutions min-1 1250 1300
Power consumption W 110 145
Current consumption A 0.49 0.64
Capacitor μF 3 3
Capacitor voltage VDB 450 450
Capacitor standard S0 (CE) S0 (CE)
Min. back pressure Pa 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 50 40
Weight 3.7 kg
Dimensions 180 mm
Rotor surface Unlacquered
Impeller material Sheet steel, galvanised
Housing material Cast aluminium
Direction of rotation Clockwise, viewed from the rotor
Protection type IP 44; depending on installation and location
Insulation class ‘B’
Humidity (F) / environmental protection class (H)
H0 – dry environment Permissible ambient temperature
max. permissible motor (transport/storage) + 80 °C
Permissible ambient temperature
min permissible motor (transport/storage) – 40 °C
Mounting position Any
Mounting position Any
Condensation water holes None
Operating mode S1
Motor bearing Ball bearing
Contact voltage according to
IEC 60990 (measurement connections
figure 4, TN system) < 0.75 mA
Motor protection Thermocontact (TOP) connected internally
Cable outlet Axial
Degree of protection I (when the protective conductor is connected by the customer)
Product complies with EN 60335-1; CE
CCC certification
