Type GR25I-6ID.BD.CR
Item no. 116882/A01

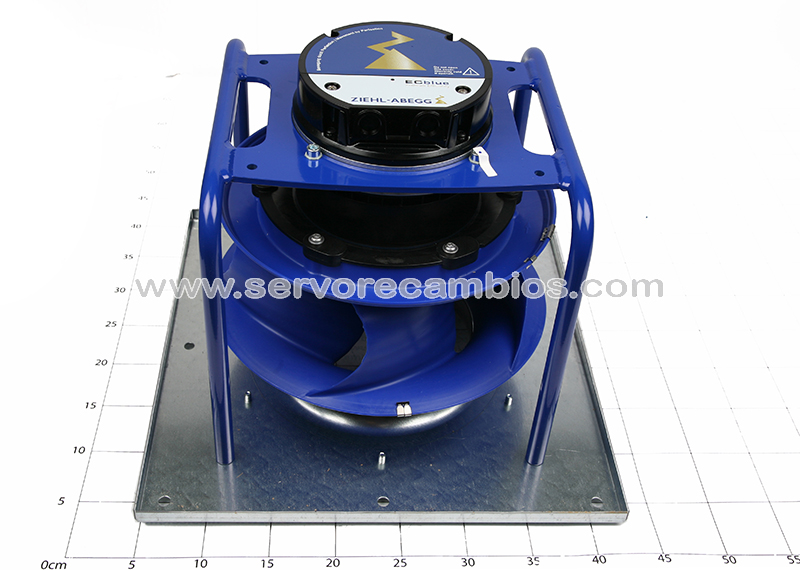

Designation Ventilation unit with backward curved impeller.
Measurement data
1~200-277 V 50/60 Hz P1 500 W 2.50-1.80 A
3170 min-1 55 °C
Electrical connection Integrated controller
ErP data
ErP measurement category: A
Air flow rate qv at Eta opt: 1757 m3/h
Pressure increase pfs at Eta opt: 651 Pa
Power input P1 at Eta opt: 491 W
Efficiency ηstatA: 73.6 %
Efficiency rating: Nactual = 87.3 / Ntarget = 62*
*ErP 2015
Minimum operating temperature -20 °C
Thermal class 155
ECblue basic control (including MODBUS)
Rotor coating Rotor 2, paint resistance class 3 (L-TI-0596)
Rotor blade colour RAL 5002 (ultramarine blue)
Impeller material Impeller made of ZAmid
Impeller colour as RAL 5002 (ultramarine blue)
Connection diagram 1360-384
Mounting position Mounting position H/Vu/Vo
Motor mounting position Mounting position H/Vu/Vo
Motor protection Integrated active temperature management
Protection type IP54
Impregnation Protection against moisture and hot weather
Inlet nozzle Inlet nozzle with volumetric flow measurement device
Bearing quality Ball bearing with long-life lubrication
Motor colour Stator/rotor separately
Mass 11.00 kg
