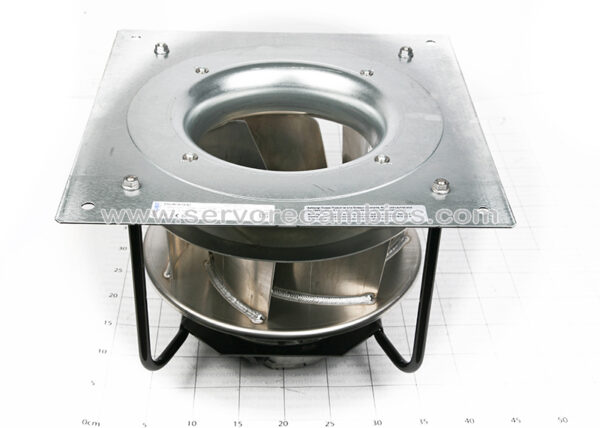

K3G280-AU06-B2

Type K3G280-AU06-B2
Motor M3G084-GF
Phase 1~
Nominal voltage VAC 230
Nominal voltage range VAC 200..277
Frequency Hz 50/60
Type of data definition ml
Speed min-1 2800
Power input W 715
Current draw A 3.1
Min. ambient temperature °C-25
Max. ambient temperature °C 40
Mass 11.5kg
Size 280mm
Surface of rotor Coated in black
Material of electronics housing Die-cast aluminium
Material of impeller Aluminium sheet
Material of mounting plate Sheetsteel,galvanised
Materia lof support bracket Steel,coated in black
Material of inlet nozzle Sheetsteel,galvanised
Number of blades 7
Direction of rotation Clockwise,seenonrotor
Type of protection IP54
Insulation class “B”
Humidity class F3-1
Max.permissible ambient motor temp.(transp./storage) +80°C
Min.permissible ambient motor temp.(transp./storage) -40°C
Mounting position Shaft horizontal or rotor on bottom;rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
