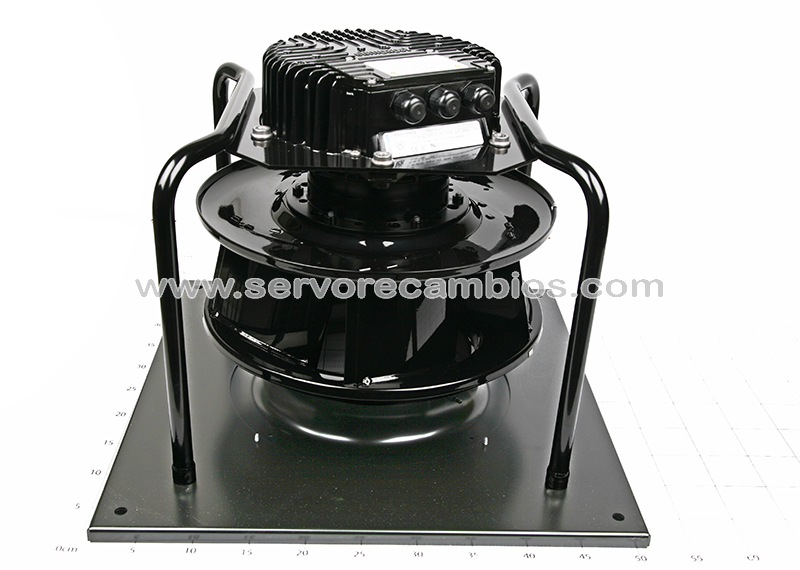

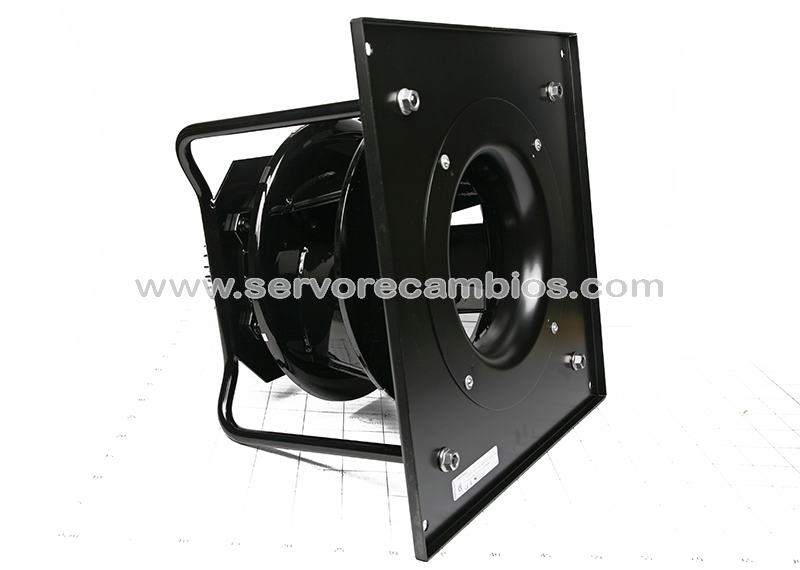

K3G310-PH58-32

Type K3G310-PH58-32
Motor M3G112-GA
Phase 3~
Nominal voltage VAC 400
Nominal voltage range VAC 380 .. 480
Frequency Hz 50/60
Method of obtaining data ml
Speed (rpm) min-1 4000
Power consumption W 2950
Current draw A 4.6
Min. ambient temperature °C -25
Max. ambient temperature °C 40
Mass 18 kg
Size 310 mm
Motor size 112
Rotor surface Painted black
Electronics housing material Die-cast aluminum, painted black
Impeller material Sheet aluminum, painted black
Support plate material Sheet steel, galvanized and painted black
Support bracket material Steel, galvanized and painted black
Inlet nozzle material Sheet steel, galvanized and painted black
Number of blades 5
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP54
Insulation class “B”
Moisture (F) / Environmental (H)
protection class H2+S
Max. permitted ambient temp.
for motor (transport/storage) +80 °C
Min. permitted ambient temp. for
motor (transport/storage) -40 °C
Installation position See product drawing
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Technical features – Output 10 VDC, max. 10 mA
– Output 20 VDC, max. 50 mA
– Output for slave 0-10 V
– Operation and alarm display
– Input for sensor 0-10 V or 4-20 mA
– External 24 V input (parameter setting)
– External release input
– Alarm relay
– Integrated PID controller
– Power limiter
– Motor current limitation
– PFC, passive
– RS-485 MODBUS-RTU
– Soft start
– Control input 0-10 VDC / PWM
– Control interface with SELV potential safely disconnected from the mains
– Thermal overload protection for electronics/motor
– Line undervoltage / phase failure detection
EMC immunity to interference According to EN 61000-6-2 (industrial environment)
EMC interference emission According to EN 61000-6-3 (household environment), except EN 61000-3-2 for
professionally used equipment with a total rated power greater than 1 kW
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) <= 3.5 mA
Electrical hookup Terminal box
Motor protection Thermal overload protector (TOP) internally connected
