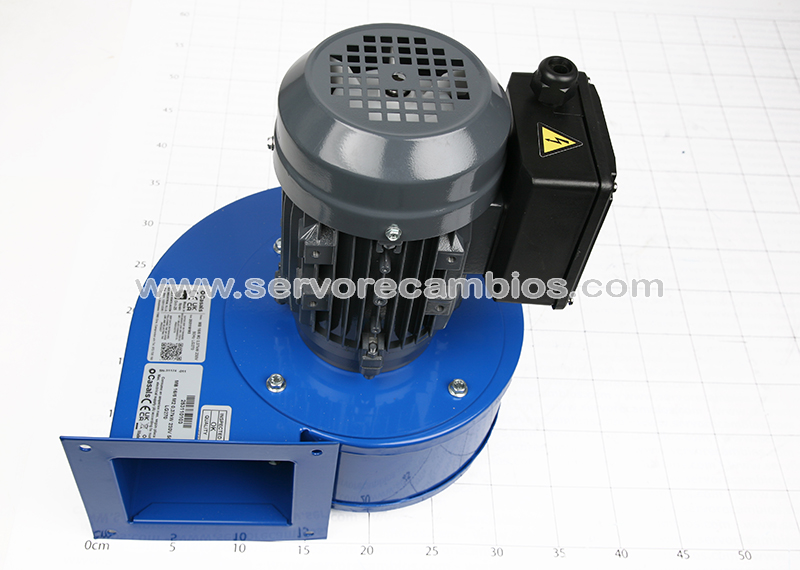

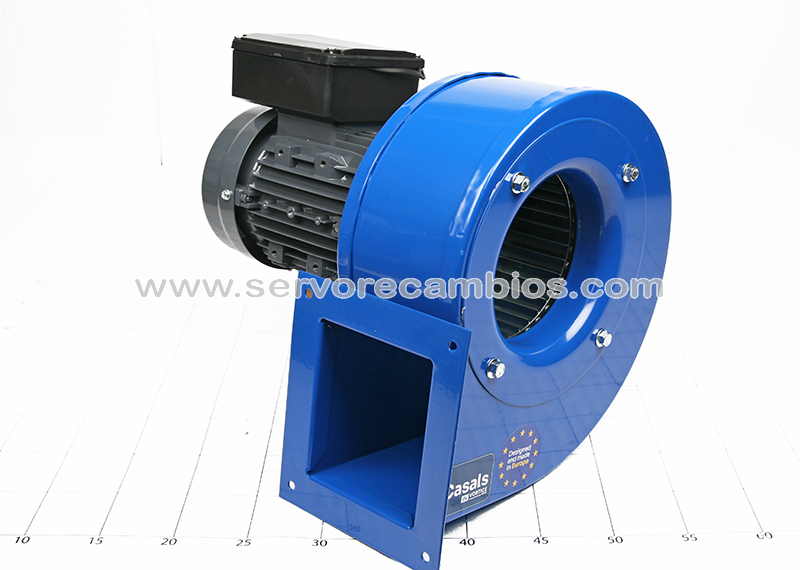

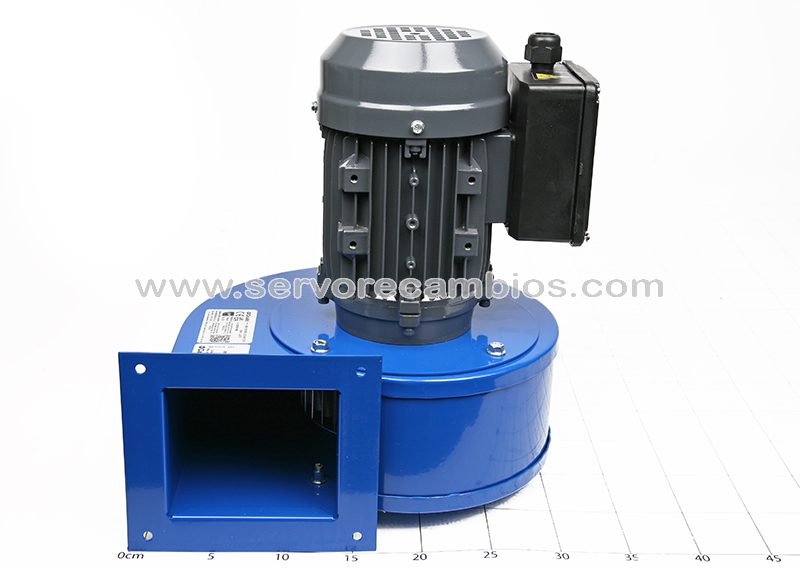

MEDIUM PRESSURE CENTRIFUGAL FAN WITH ACTION
CONSTRUCTION FEATURES
• Casing made of rolled steel sheet.
• Fully welded or riveted casing.
• Single-suction multi-blade impeller with forward-curved blades made of galvanised sheet metal.
• Protected against corrosion by polyester resin powder coating.
• Standardised squirrel cage asynchronous motor with IP-55 protection and class F insulation. Standard voltages 230V 50Hz for single-phase motors, 230/400V 50Hz for three-phase motors.
• Available positions (to be specified when ordering): LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315.
• The codes indicated correspond to the model in position LG270.
APPLICATIONS
Designed for duct installation, they are suitable for:
• Industrial processes, localised extraction or injection.
• Machine cooling, parts cooling.
• Transport of completely clean, dust-free air.
• Maximum continuous operating temperature: transported air: 130ºC, ambient: single-phase 50ºC, three-phase 60ºC.
Type MB 16/6 M2 0.37kW
Max. efficiency (%) 41.56
Efficiency rating 49.96
Power consumption (kW) 0.47
Flow rate (m³/h) 890.25
Total pressure (Pa) 787.11
Speed (rpm) 2760
Specific ratio 1.00
Mass 9.5 kg
Capacitor 12 µF 450 V
