MK137-2EK.20.U-135228

Type MK137-2EK.20.U
Article number 135228

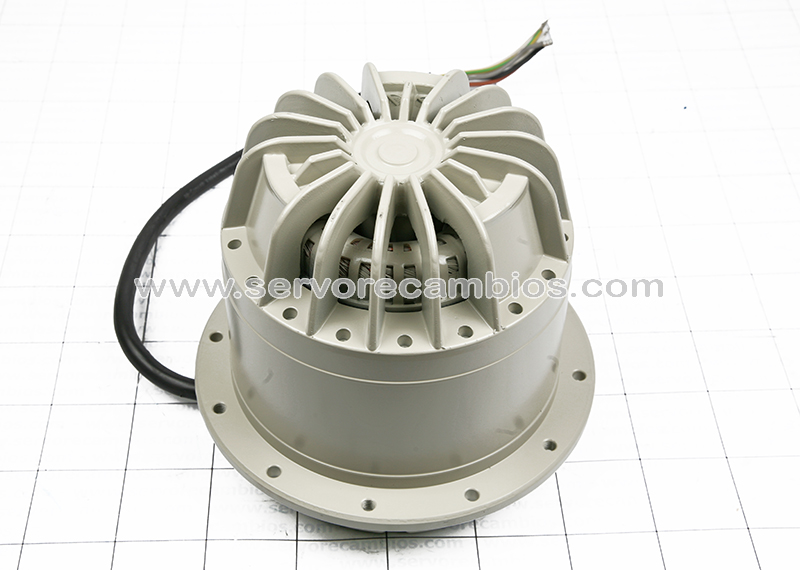

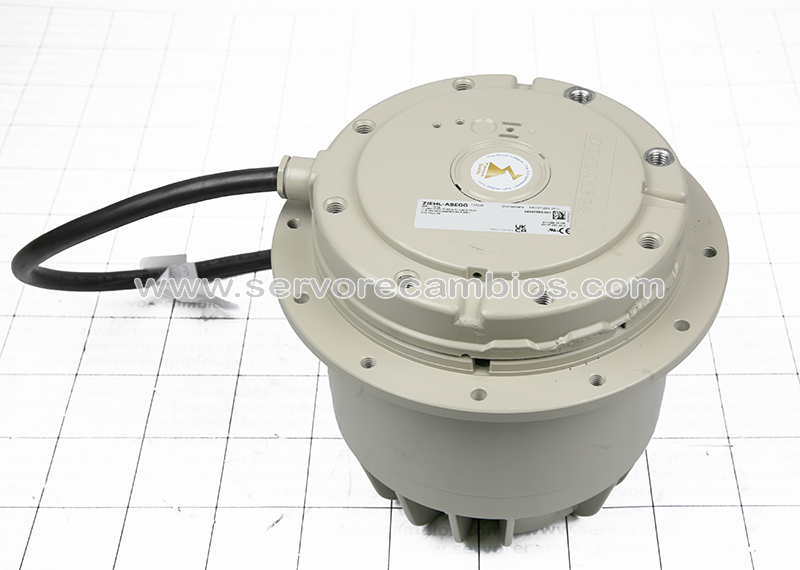

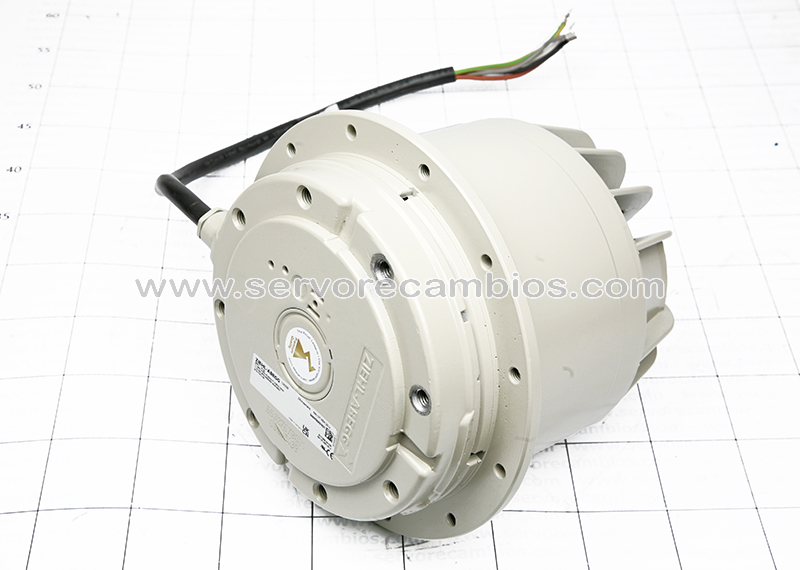

Designation External rotor motor
Rated values
1~230V ±15% 47-63Hz P1 2,60-4,10kW
11,50-18,00A 2870-3300/min 60,0uF/400V
Electrical connection
Supply cable side,
6x 2,08mm2 (AWG14)x 55cm
Min. operating temperature °C -25
Motor protection thermal contact
Type of protection IP10
Thermal class,Thermal class 155
Impregnation Moisture and hot climate protection
Balancing 6,3
Quality of bearings ball bearing with long-time lubrication
Special bearing With hybrid ball bearing
Labelling UL/CSA E111399 ZA-155
Certification Motor-Recognized Component
Mass kg 19,00
ErP Data
