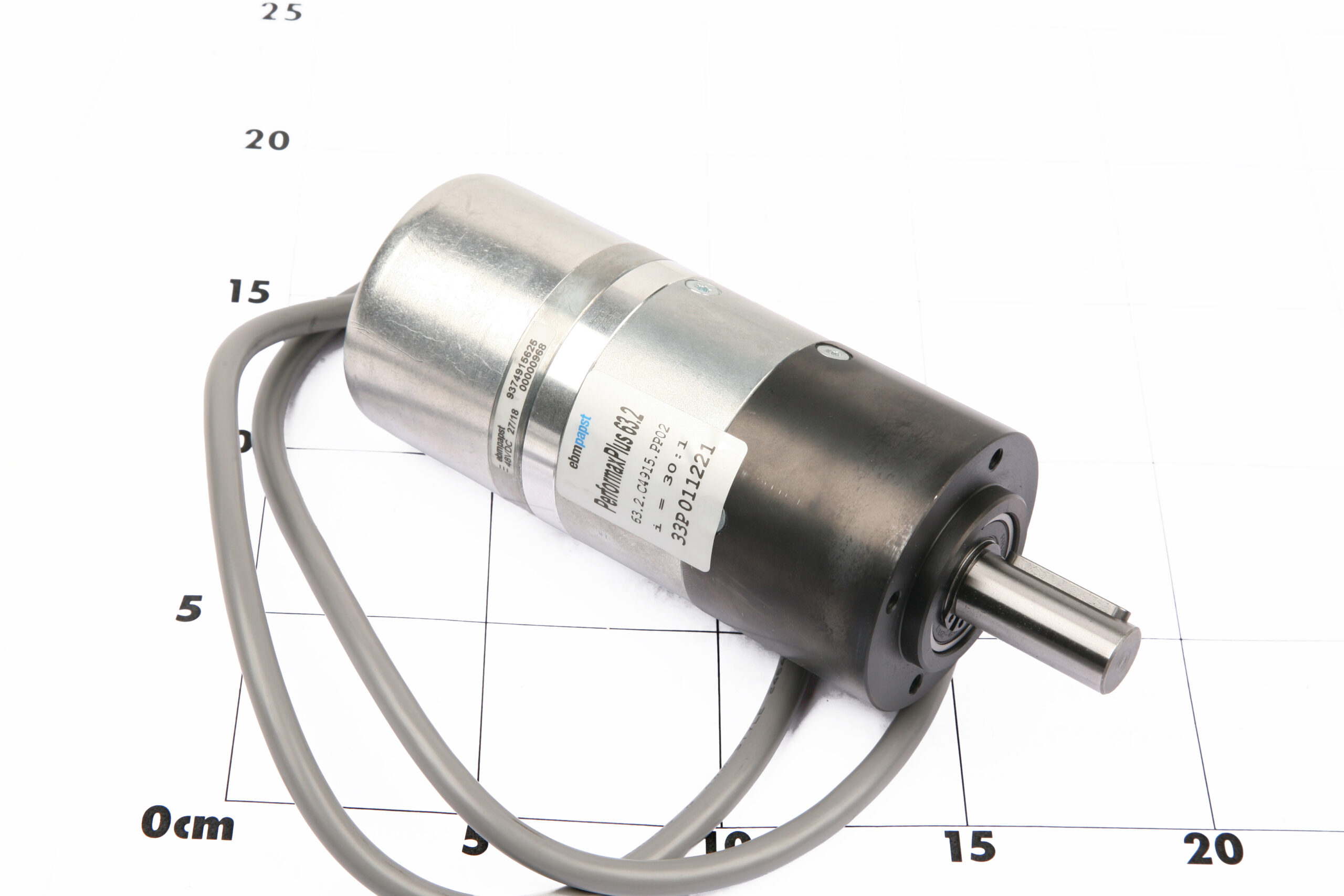

Type Performax 63.2 VDC-3-49-15-B00 30,0:1
Characteristics of the drive solution
Typ Unit Value
Order number – 63.2.C4915.P02
Output power W 51.0
Output torque [Nm] Nm 3.7
Output speed [rpm] rpm 133.0
max. radial load N 350.0
max. axial load N 500.0
Lifetime h [CB=1] 5000.0
Weight kg 1.6
Length mm 128.0
Permissible operating temperature – 0°C to +40°C
Protection class – IP 54
Length [mm] mm 128.0
Motor
Typ Unit Value
Type of motor – brushless EC motor, external rotor
Motor designation – VDC-49.15-B00-K3
Voltage V 24 V
Nominal torque mNm 150.0
Nominal speed rpm 4000.0
Nominal power W 63.0
Rated current A 3.5
Integrated drive controller – K3 (integrated speed control)
Number of poles – 14
Weight of Motor kg 0.59
Motor diameter [mm] mm 63.0
Starting torque mNm 300.0
Operating capacitor – no
Recommend speed control range rpm 0 … 4000
Speed at no-olad operation rpm 4000.0
No-load current A 0.4
Motor group – EC Motoren
Rotor moment of inertia kgm2 x10–6 108.0
Gearbox
Typ Unit Value
Type of gear – planetary gearhead
Gearbox designation – P63.2.0030
Gear stages – 2.0
Reduction – 30.0
Efficiency % 81.0
max. axial load N 500.0
max. radial load N 350.0
Gearhead play – about 0.7° to 1.2°
Lubrication – maint. free-grease lubricated for life
