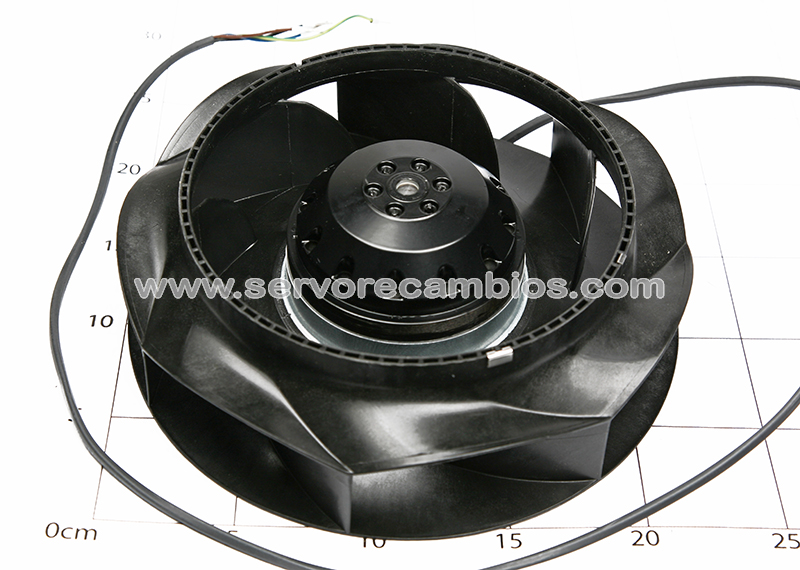

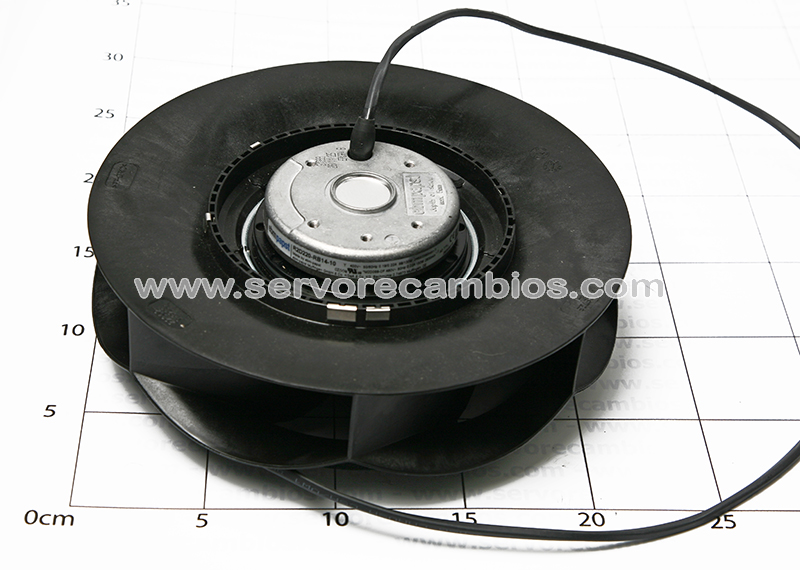

R2D220-RB14-10

Type R2D220-RB14-10
Motor M2D068-CF
Phase 3~ 3~ 3~
Nominal voltage VAC 400 400 480
Wiring Y Y Y
Frequency Hz 50 60 60
Method of obtaining data ml ml ml
Valid for approval/standard CE CE UL 2111
Speed (rpm) min-1 2450 2580 2830
Power consumption W 98 130 150
Current draw A 0.19 0.22 0.22
Min. back pressure Pa 0 0 0
Min. back pressure in. wg 0 0 0
Min. ambient temperature °C -25 -25 -25
Max. ambient temperature °C 55 45 35
Starting current A 0.40 0.42 0.48
Mass 1.66 kg
Size 220 mm
Motor size 68
Rotor surface Painted black
Impeller material PP plastic
Number of blades 7
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent
Insulation class “B”
Moisture (F) / Environmental (H)
protection class H1+
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Shaft horizontal or rotor on top; rotor on bottom on request
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) < 0.75 mA
Motor protection Thermal switch auto reset, internally connected
With cable Axial
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Comment on CE Ecodesign Directive 2009/125/EC + Fan Directive (EC) No. 327/2011 does not apply, as
power consumption <125W.
Approval CCC; UL 1004-3; CSA C22.2 No. 77
