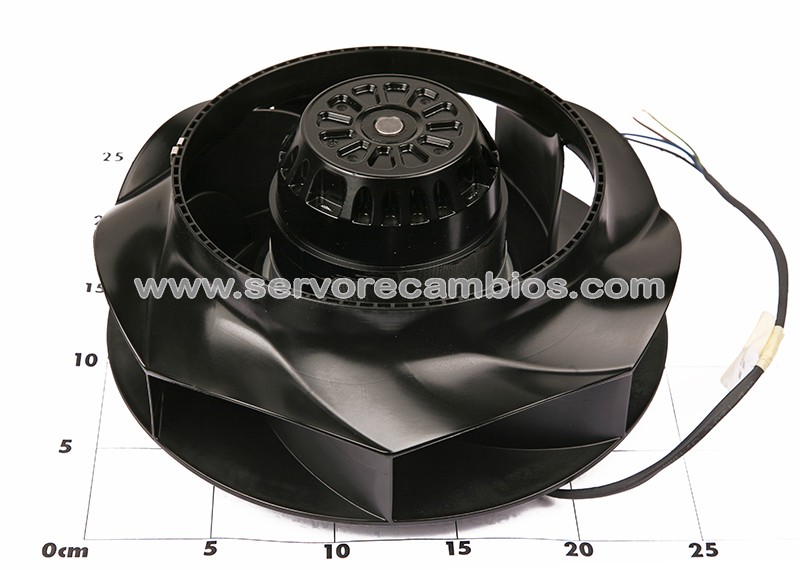

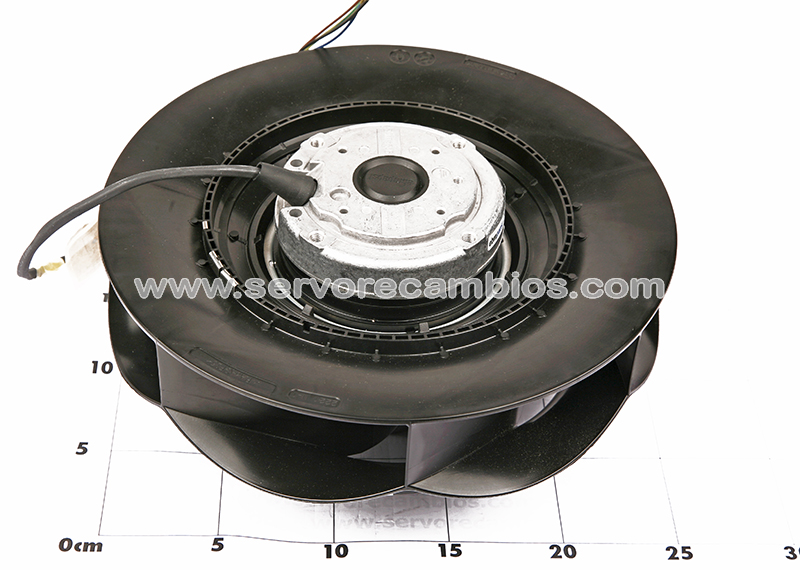

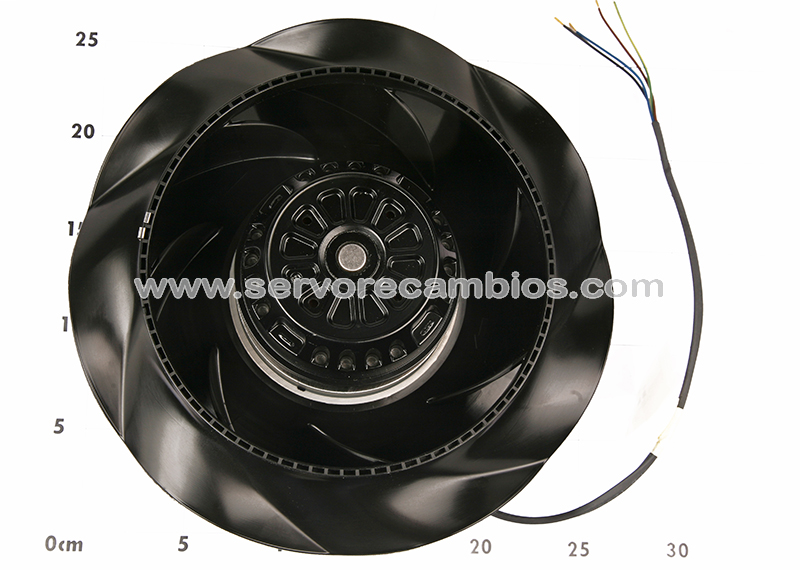

R2E250-RB06-33

Type R2E250-RB06-33
Motor M2E074-EI
Phase 1~ 1~ 1~
Nominal voltage VAC 230 230 230
Frequency Hz 50 60 60
Method of obtaining data ml ml ml
Valid for approval/standard CE CE UL 1004-3
Speed (rpm) min-1 2750 3090 3090
Power consumption W 240 385 400
Current draw A 1.06 1.7 1.8
Capacitor μF 5 5 5
Capacitor voltage VDB 450 450 450
Capacitor standard S0 (CE) S0 (CE) UL
Min. back pressure Pa 0 0 0
Min. back pressure in. wg 0 0 0
Min. ambient temperature °C -25 -25 -25
Max. ambient temperature °C 80 70 70
Starting current A 3.1 2.87 2.87
Mass 3.82 kg
Size 250 mm
Motor size 74
Rotor surface Painted black
Impeller material PA plastic
Number of blades 7
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class “F”
Moisture (F) / Environmental (H)
protection class H1+
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) < 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Approval UL 1004-3; CSA C22.2 No. 77
