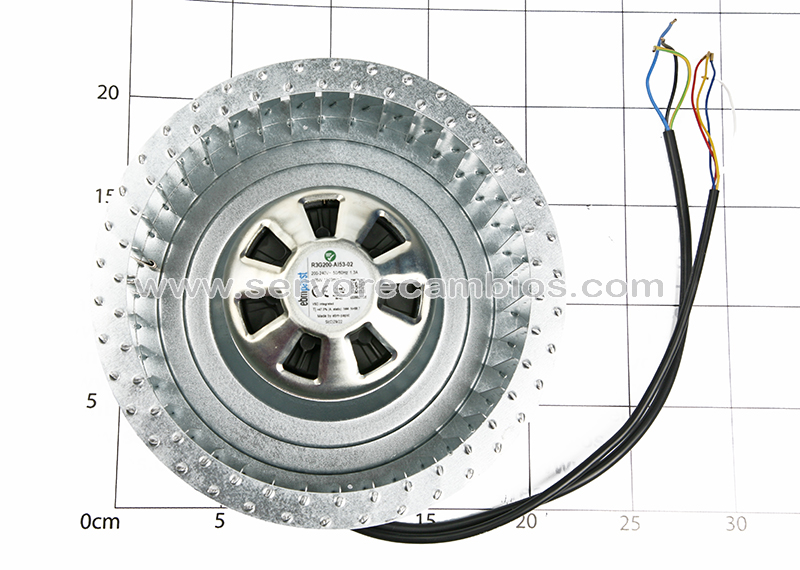

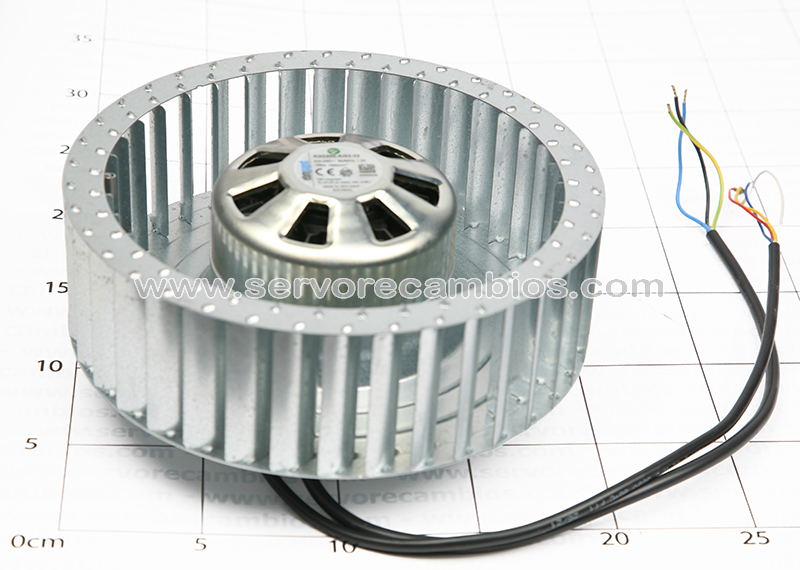

R3G200-AI53-02

Type R3G200-AI53-02
Nominal voltage VAC 1~230
Frequency Hz 50 60
Air flow m3/h 800
Speed (rpm) min- 1560
Maxim input power W 165
Maxim Input current A 1,30
Sound power level dB(A) 74
Min. ambient temperature °C -25
Max. ambient temperature °C 60
Impeller material Sheet steel, galvanized
Electronics housing: Die-cast alumminium
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP54
Insulation class “B”
Environmetal protection class H1
Mass 2,10Kg
Installation position, Any
Mode S1
Mounting: Ball bearing
Motor protection: Elektronic
Motor: 3-core
Protection Class I
(With costumer connection of protective earth)
Cable exit: variable
Speed levels: Stepless controllable
Conformity with standards EN 60335-2-31; CE
Approvals: VDE,EAC
