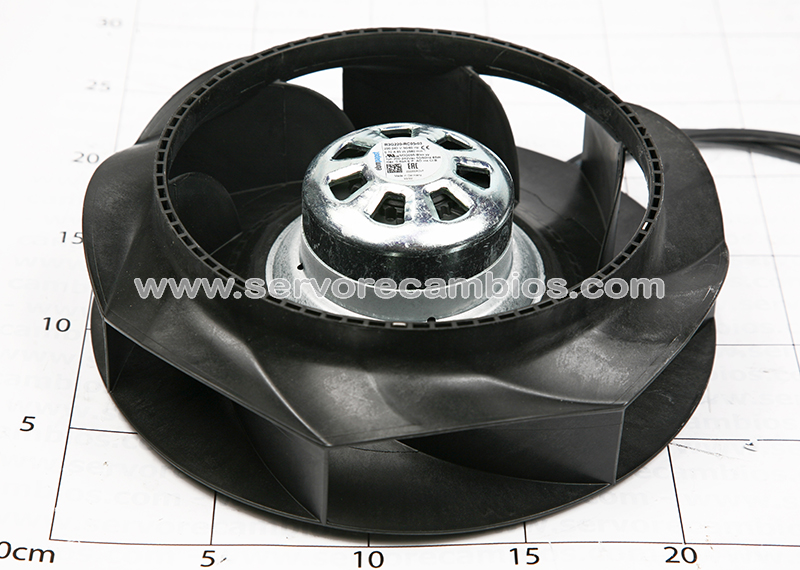

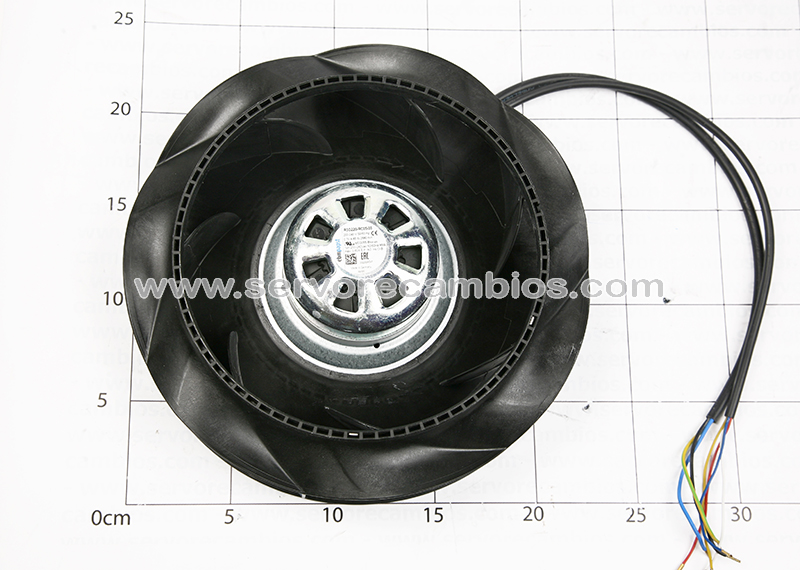

R3G220-RC05-03

Type R3G220-RC05-03
Motor M3G055-BI
Phase 1~
Nominal voltage VAC 230
Nominal voltage range VAC 200 .. 240
Frequency Hz 50/60
Method of obtaining data ml
Speed (rpm) min-1 2580
Power consumption W 85
Current draw A 0.7
Min. ambient temperature °C -25
Max. ambient temperature °C 60
Mass 1.13 kg
Size 220 mm
Motor size 55
Rotor surface Thick-film passivated
Electronics housing material Die-cast aluminum
Impeller material PP plastic
Number of blades 7
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP54
Insulation class “B”
Moisture (F) / Environmental (H)
protection class H1
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Any
Condensation drainage holes None, open rotor
Mode S1
Motor bearing Ball bearing
