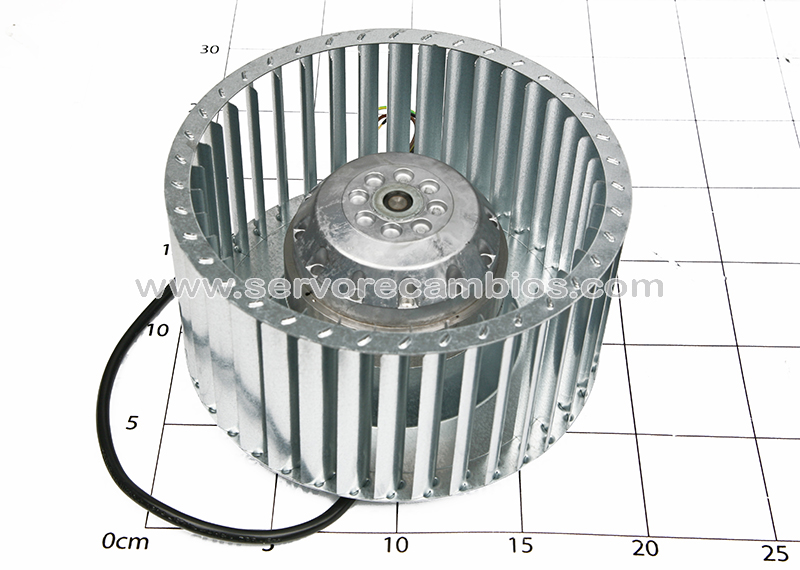

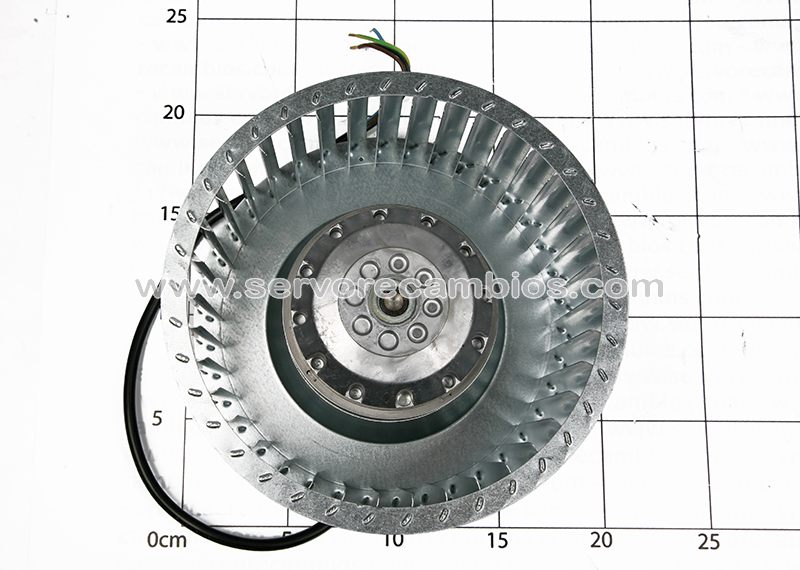

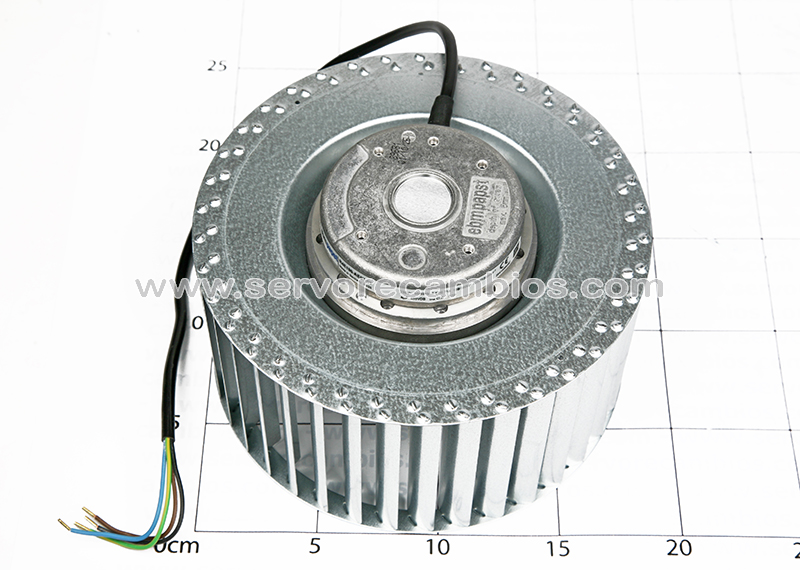

R4E180-AE07-01

Type R4E180-AE07-01
Motor M4E068-EC
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Method of obtaining data fa fa
Valid for approval/standard CE CE
Speed (rpm) min-1 1050 1300
Power consumption W 138 160
Current draw A 0.61 0.71
Capacitor μF 4 4
Capacitor voltage VDB 450 450
Capacitor standard S0 (CE) S0 (CE)
Min. back pressure Pa 0 130
Min. back pressure inH2O 0 0.52
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 45 30
Starting current A 0.73 0.71
Mass 2.6 kg
Fan size 180 mm
Rotor surface Unpainted
Impeller material Sheet steel, galvanized
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent
Insulation class “B”
Moisture (F) / Environmental (H)
protection class
H0 – dry environment
Max. permitted ambient temp.
for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for
motor (transport/storage) – 40 °C
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system) < 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
With cable Lateral
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
