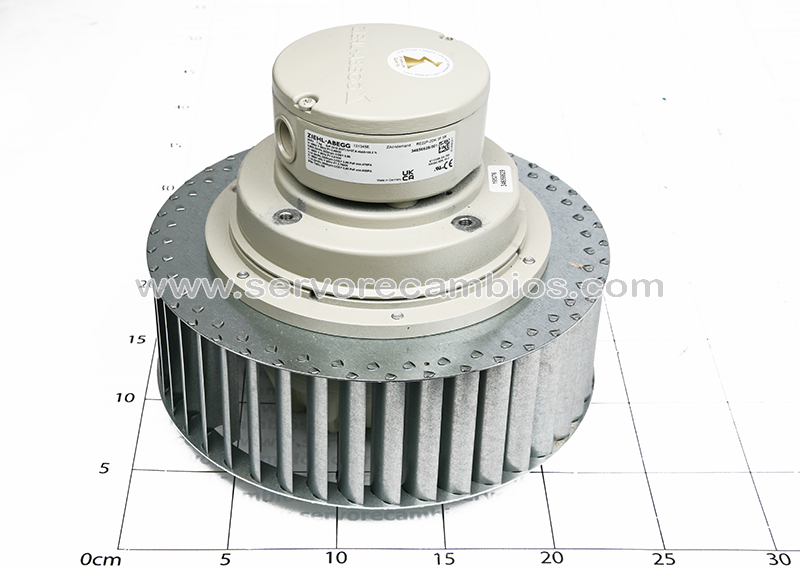

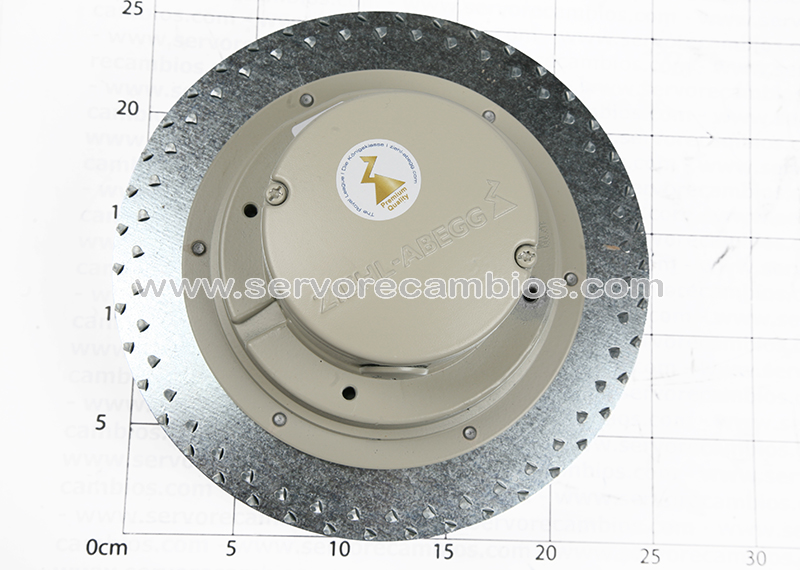

Type RE22P-2DK.3F.5R
Article number 131345E
Designation Single inlet impeller with forward curved blades.
Measurement data
3~400V ±10% and 50Hz P1 0.49kW 0.80A ∆I=0% 2320/min COSY 0.90 3~400V ±10% and 60Hz P1 0.61kW 1.10A ∆I=0% 2230/ min COSY 0.90 PsF min.470PA3~480V±5% Y
60Hz P1 0.76kW
1.10A ∆I=0% 2550/min COSY 0.90 PsF min.620PA
Minimum operating temperature -20°C
Thermal class 155
Impeller material Impeller made of galvanized sheet metal
Motor protection thermal contact
Protection type IP54
Impregnation Moisture and hot climate protection
Bearing quality ball bearing with long-time lubrication
Balance quality G 2.5
Mass 7.10Kg
