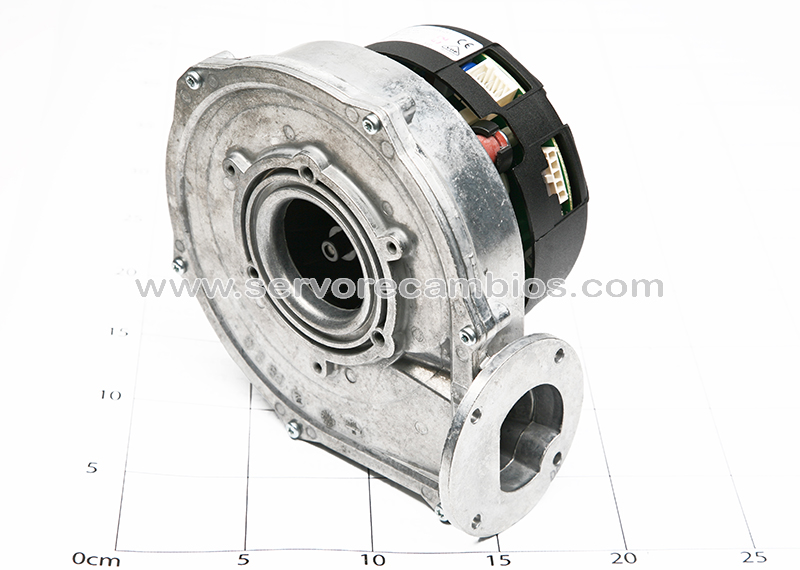

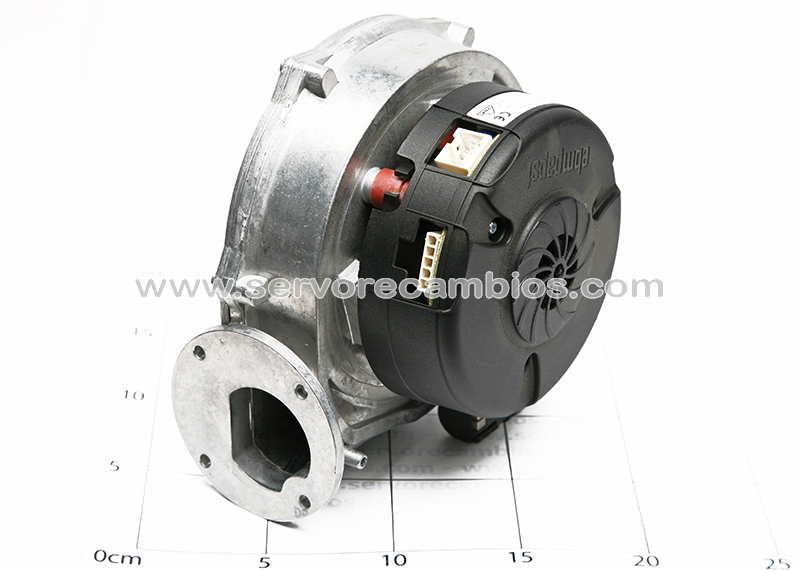

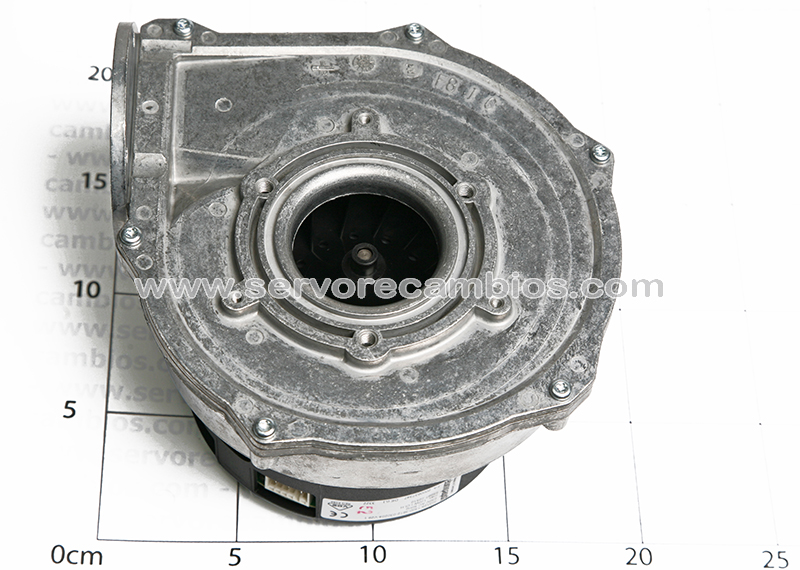

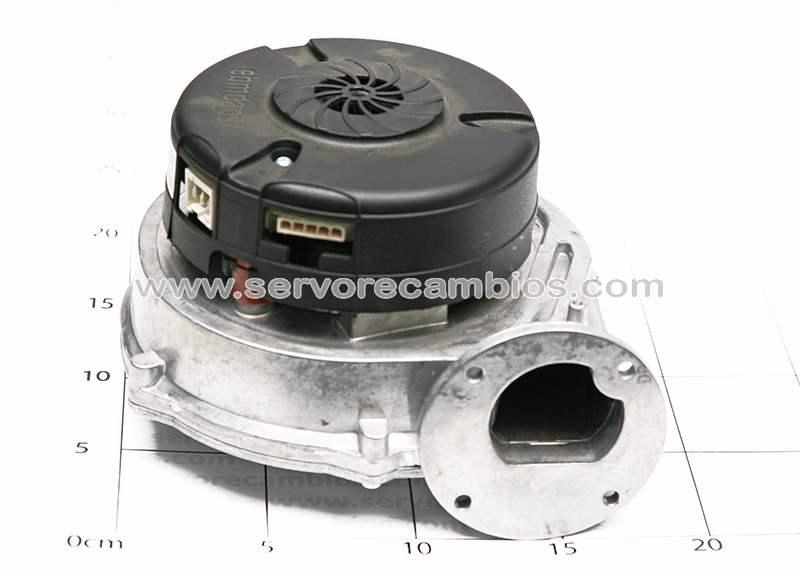

RG128/1300-3612-030204 – 55667.22510

Type RG128/1300-3612-030204 – 55667.22510
Electrical rating 230V AC 50Hz max.120W 1A
Allowable premix gases Gases belong to gas families II+III
Type of interface 04600 45104
Inrush current (TAmb.<25°C, min. 1h off) 15 A
Insulation class I.Cl.H
Switching operation mode Only with interface
Allowable ambient temperature of motor (storage) min. -25 °C (-13 °F) / max. 70 °C (158 °F)
Allowable ambient temperature of motor (operation) min. 0 °C (32 °F) / max. 60 °C (140 °F)
Allowable temperature of inlet medium (operation) min. -15 °C (5 °F) / max. 80 °C (176 °F)
Relative humidity 0 % ─ 85 % (non condensing)
Degree of protection drive electronics (IP-code) IP10
Degree of protection blower (IP-code) IP00
Classification Designed for Class I
Certification CE and VDE, REG E065
Admissible operating positions All, beside pendent motor
