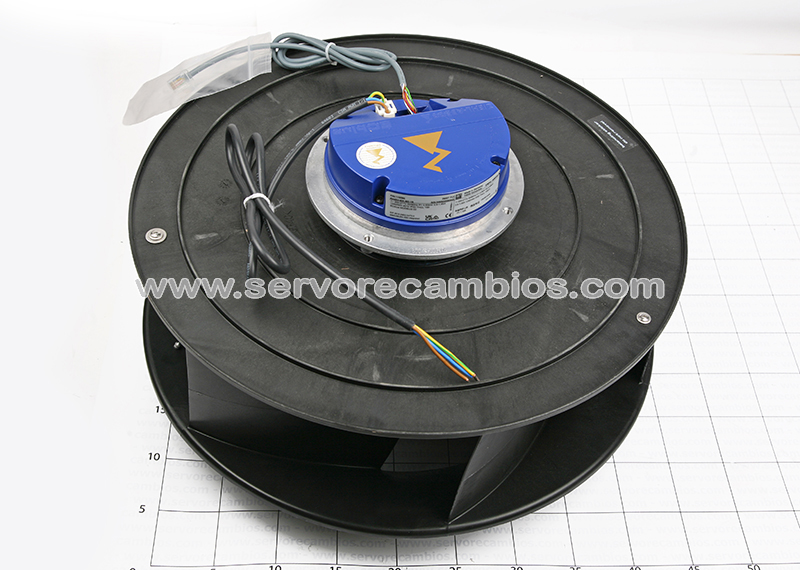

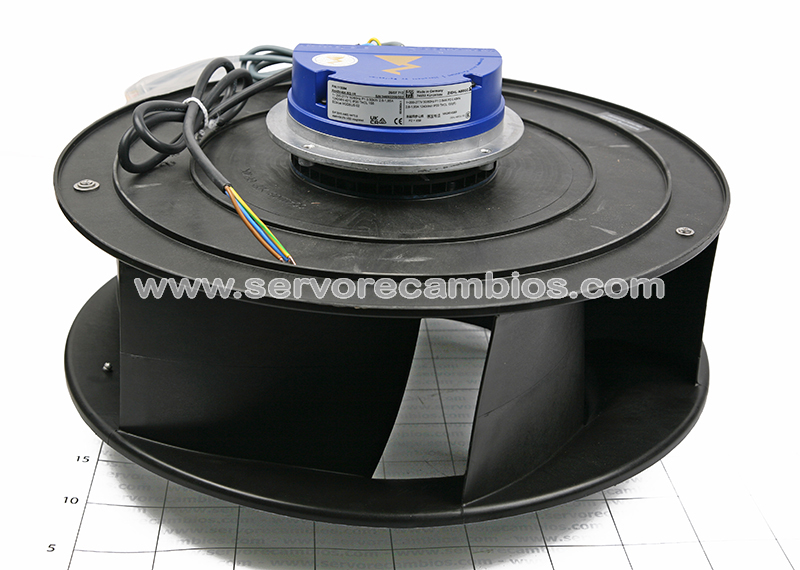

RH45V-6IK.BD.1R – 115084

Type RH45V-6IK.BD.1R
Article number 115084

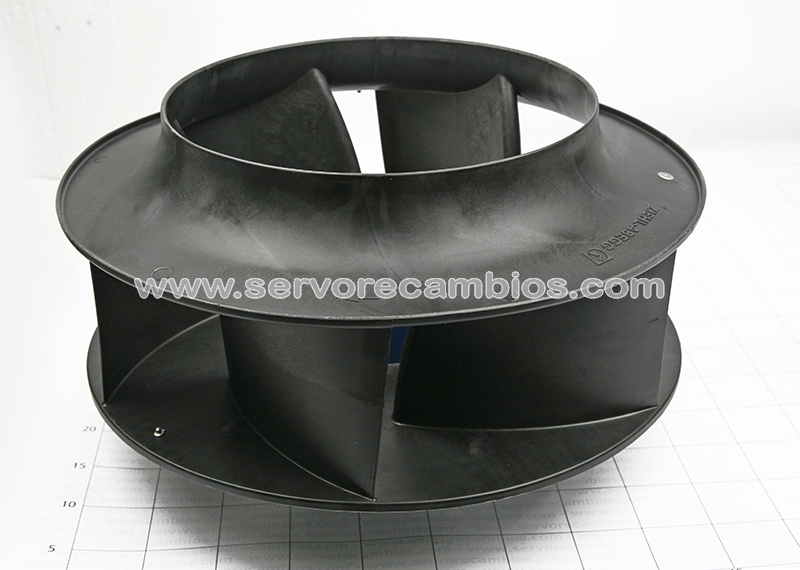

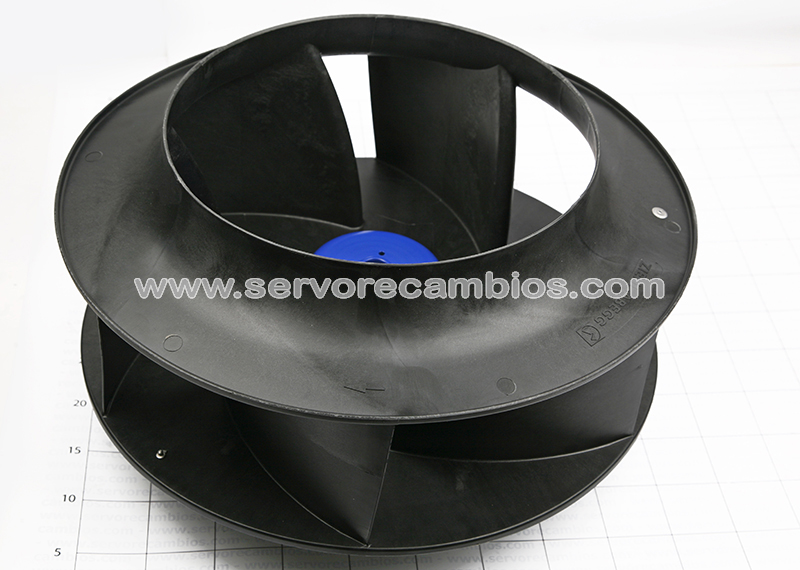

Designation Single inlet impeller with backward curved blades.
Fan design with K flange
Rated values 1~200-277V 50/60Hz P(ed) 0.50 kW 2.60-1.85A
1240min−1 40°C
ErP Data
Measurement category ErP: A
Air flow q(v) on Eta opt: 3386 m3/h
Pressure increase p(fs) on Eta opt: 277 Pa
Input power P(ed) on Eta opt: 495 W
Efficiency Η(statA): 59.8 %
Efficiency grade: N(actual) = 73.5 / N(target) = 62*
*ErP 2015
Thermal class THCL155
Type PFC integrated 1~PFC
Motor protection integrated active temperature management
Type of protection IP20
Impregnation Moisture and hot climate protection
Quality of bearings ball bearing with long-time lubrication
Condens. drain holes Condensation drain hole rotor open
Min. operating temperature -15°C
Mass 7.40 kg
