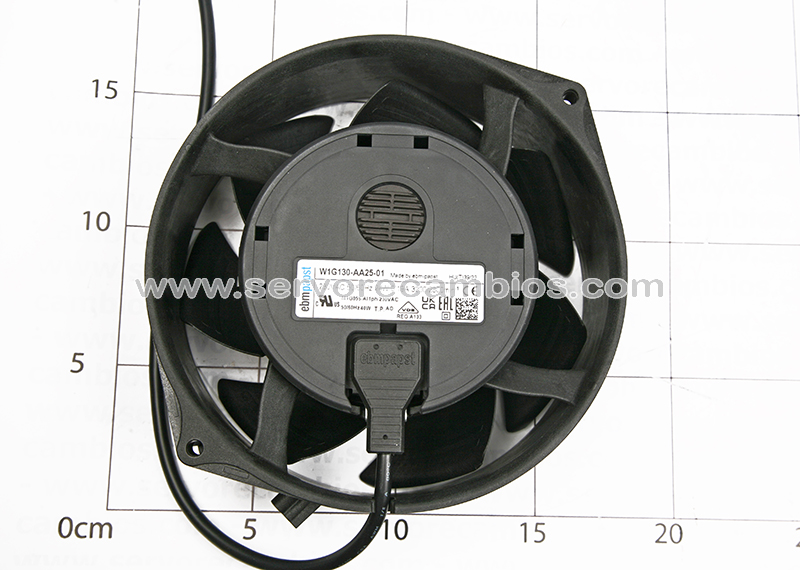

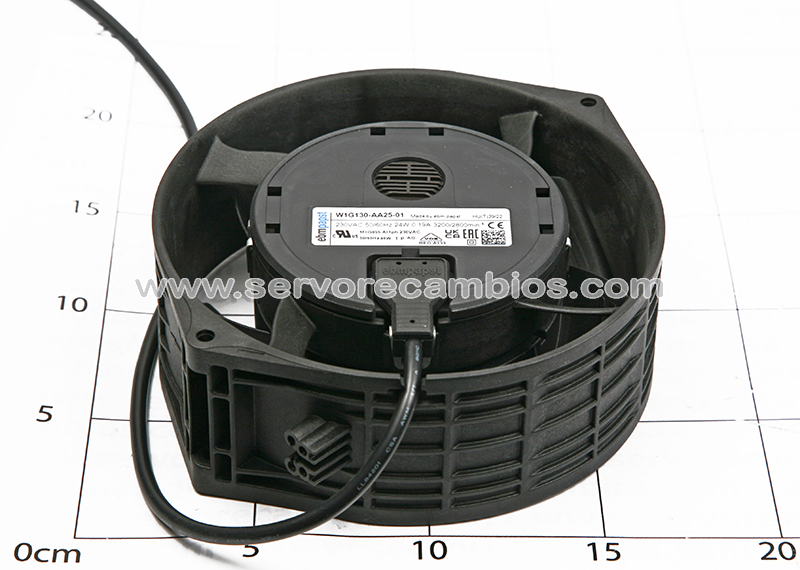

W1G130-AA25-01

Type W1G130-AA25-01
Motor M1G055-AI
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50/60 50/60
Type of data definition ml ml
State prelim. prelim.
Speed min-1 2800 3200
Power input W 16 24
Current draw A 0.13 0.19
Max. back pressure Pa 90
Min. ambient temperature °C -30 -30
Max. ambient temperature °C 70 70
Mass 0.75 kg
Size 130 mm
Material of impeller PA plastic
Material of wall ring PP plastic
Number of blades 7
Direction of air flow “V”
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 54
Insulation class “B”
Humidity class F3-1
Max. permissible ambient motor
temp. (transp./ storage) + 80 °C
Min. permissible ambient motor
temp. (transp./storage) – 40 °C
Mounting position Any
Condensate discharge holes None
Operation mode S1
Motor bearing Ball bearing
